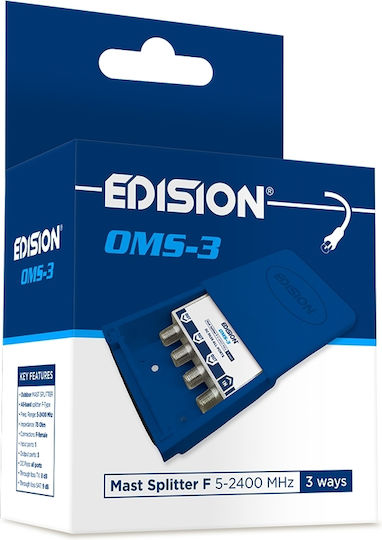

EDISION 3-way Splitter F 5-2400Mhz OMS-3

It features a special installation box for outdoor use, made of synthetic material, with a fully sliding and removable front side, as well as a movable and detachable cable entry and management point.

On the back, it has a clamp arrangement and multiple mounting points with a tie wrap (included), as well as ready provisions for mounting with wall plugs and screws (included).

Inside the box, there is an "All-band" TV signal splitter with female F-type connectors and a cast, one-piece, nickel-plated zinc shell. It is designed and manufactured to high-performance standards, offering low pass-through losses, high isolation between outputs, and can be used in all TV installations for both Terrestrial Digital and Satellite signals.

It has 1 input and 3 outputs for signal distribution from the coaxial cable network, along with DC power pass from all outputs to the input, facilitating the technician in satellite TV installations.

Technical specifications:

• Outdoor "All-band" TV signal splitter in a box, with female F-type connectors
• Frequency range: 5 to 2400 Mhz, 75 Ohm
• Inputs: 1
• Outputs: 3
• Cast, one-piece, nickel-plated zinc shell for corrosion protection and electromagnetic shielding
• Pass-through losses for TERRESTRIAL: 8 dB
• Pass-through losses for SATELLITE: 9 dB
• DC pass: From all outputs (OUT) to the input (IN). 12vdc/24vdc, up to 500mA maximum
• Dimensions with box (W x H x D): 78x85x42 mm

Package Contents:

• OMS-3 Splitter
• Outdoor box
• Tie wrap
• Screws and wall plugs for mounting
