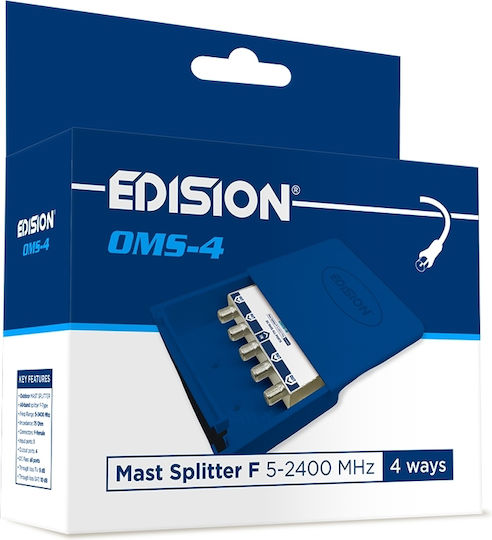

The Edision 26-03-0203 splitter distributes a TV signal to four outputs and supports terrestrial and satellite installations. It has a frequency range of 5–2400 MHz and passes DC power from all outputs to the input to power equipment such as antennas with active dipoles or masthead amplifiers.

It can be mounted on a mast or wall inside an outdoor enclosure with a removable front panel and a movable, removable cable entry point. The splitter has female F connectors and a one-piece die-cast zinc housing with nickel plating.

• Type: Mast splitter
• Frequency range: 5–2400 MHz
• Impedance: 75 Ohm
• Inputs: 1
• Outputs: 4
• Connectors: Female F-type
• DC power pass: From all outputs to the input, 12 VDC/24 VDC, up to 500 mA
• Terrestrial signal insertion loss: 9 dB
• Satellite signal insertion loss: 10 dB
• Insertion loss (IN/OUT): Up to 8 dB at 5–40 MHz, 9 dB at 471–1000 MHz, 10 dB at 1001–1350 MHz, 10.5 dB at 1351–1750 MHz and 12 dB at 2051–2400 MHz
• Output isolation (OUT/OUT): At least 18 dB at 5–40 MHz, 21 dB at 471–1000 MHz, 21 dB at 1001–1350 MHz, 20 dB at 1351–1750 MHz and 20 dB at 2051–2400 MHz
• Enclosure dimensions (W × H × D): 120 × 97 × 47 mm
• Package contents: Splitter, outdoor enclosure, cable tie, screws and wall plugs
