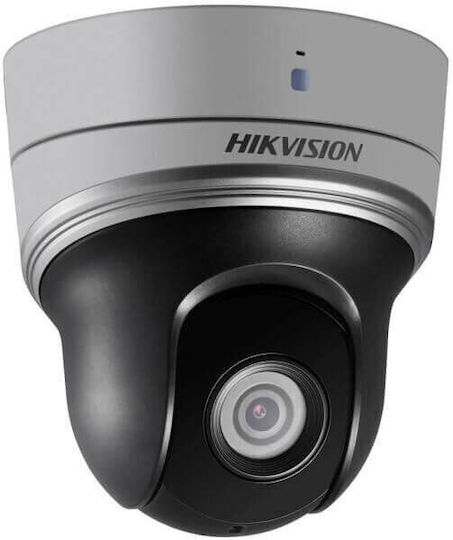

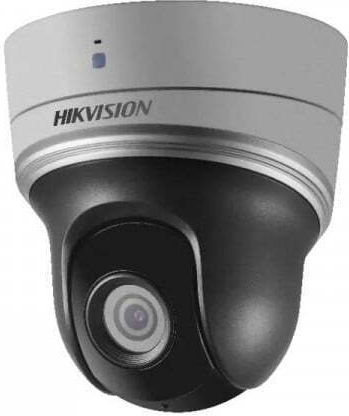

Digital IP security camera from Hikvision, with Full HD image resolution at 1080p. For image transmission, it connects directly to an IP network, such as the Internet or a local network (LAN), allowing remote monitoring of the installation area via a computer or other device (smartphone or tablet) that has access to the same network. It offers up to 15% better image quality compared to a 1MP resolution camera and is suitable for monitoring stores, offices, or residential areas, providing good level resolution for the recognition of faces and objects.
Description
Specifications
Capabilities
Digital IP security camera from Hikvision, with Full HD image resolution at 1080p. For image transmission, it connects directly to an IP network, such as the Internet or a local network (LAN), allowing remote monitoring of the installation area via a computer or other device (smartphone or tablet) that has access to the same network. It offers up to 15% better image quality compared to a 1MP resolution camera and is suitable for monitoring stores, offices, or residential areas, providing good level resolution for the recognition of faces and objects.
Infrared Night Vision
It incorporates night vision functionality with infrared technology that allows monitoring of any activity in low light conditions or even in complete darkness.
Power over Ethernet Supply
It provides the ability to power it through the same ethernet cable used for network connection, without necessarily requiring the use of a separate power supply. This significantly facilitates its installation.
Waterproof Protection
It features waterproof protection so you can install it outdoors safely and without being affected by weather conditions. Regardless of the weather or conditions, you will have a comprehensive view of your space whenever you want!
Wi-Fi Connectivity
The camera connects via Wi-Fi network and data transmission and reception are done wirelessly without the need for additional cables.
PTZ Function
The PTZ (pan-tilt-zoom) function allows you to remotely zoom in and rotate the camera vertically or horizontally. This way, you can focus or direct your attention to objects or people located in different positions within the camera's surveillance area.
H.265+ Compression Technology
H.265+ compression is an evolution of the previous H.265 technology, also known as HEVC (High Efficiency Video Coding). H.265+ offers improvements in image and video compression, allowing for the reduction of file sizes without significant loss of quality. This is particularly useful in applications where storage space or bandwidth reduction are significant concerns.
Technical Specifications:
- FOV: Horizontal field of view: 94.5° to 38° (wide-tele), Vertical field of view: 52° to 21.5° (wide-tele), Diagonal field of view: 110° to 44° (wide-tele) .
- Zoom Speed: Approx. 2 sec. (optical lens, wide-tele) .
- Working Distance: 10 mm to 1500 mm (wide-tele) .
- Aperture Range: F1.8 to F2.5.
- Focal Length: 2.8 mm to 12 mm, 4x optical zoom.
- Max. Resolution: 1920 ? 1080.
- Sub-Stream: 50Hz: 25fps (704 x 576, 640 x 480, 352 x 288),60Hz: 30fps (704 x 480, 640 x 480, 352 x 240) .
- Main Stream: 50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720),60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720) .
- Third Stream: 50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288),60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240) .
- Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB. NAS (NPS, SMB/ CIPS), ANR.
- Network Protocols: IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE , Bonjour.
- Simultaneous Live View: Up to 20 channels.
- Alarm Output: 1 channel alarm output.
- Alarm Input: 1 channel alarm input.
- Audio Input: 1 channel audio input.
- Audio Output: 1 channel audio output.
- Network Interface: 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3af, class3) .
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H .264/MJPEG.
- Video Bit Rate: 32 Kbps to 16384 Kbps.
- Image Sensor: 1/2.8" progressive scan CMOS.
- Min. Illumination: Color: 0.05 Lux @(F2.0, AGC ON),B/W: 0.005 Lux @(F2.0, AGC ON),0 Lux with IR.
- Shutter Time: 1/1 s to 1/10,000 s.
- Day & Night: IR cut filter.
- Digital Zoom: 4x.
- IR Distance: Up to 20 m.
- Pan Range: 350°.
- Tilt Range: From 0° to 90°.
- Pan Speed: Configurable, from 0.1°/s to 60°/s,Preset Speed: 60°/s.
- Tilt Speed: Configurable, from 0.1°/s to 50°/s,Preset Speed: 50°/s.
- Material: ADC12 PC PC+ABS SUS304 POM.
- Dimensions: Φ 125 mm x 136.7 mm.
- Weight: 0.65 kg.
- Power Supply: DC 12V, 1.0 A and PoE (802.3af), 36 to 57 VDC, 0.35 A, Class3, Max.: 9W, including max. 4W for IR.
Product Details
- Use
- IP
- Type
- Dome
- Placement
- Outdoor
- Video Resolution
- 1080p
- Power Source
- 12V, PoE
- Lens Size
- 2.8-12 mm
- Colour
- Grey
Night Vision
- Infrared
- Yes
- Color Capture
- No
Operations
- PTZ
- Yes
- Microphone
- Yes
- Speaker
- No
- Mobile App
- Yes
- Wide Angled Lens
- No
- Wide Dynamic Range
- Yes
- Thermal
- No
- Motion Detection
- No
- Rotating
- Yes
- Siren
- No
Additional Features
- Number of Cameras
- 1
- Memory Card Slot
- Yes
- Solar Panel
- No
Zoom Function
- Digital Zoom
- Yes
- Optical Zoom
- No
Smart Attributes
- Wi-Fi
- Yes
- 4G
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
