Breve Converter Industrial Type 16024-9995

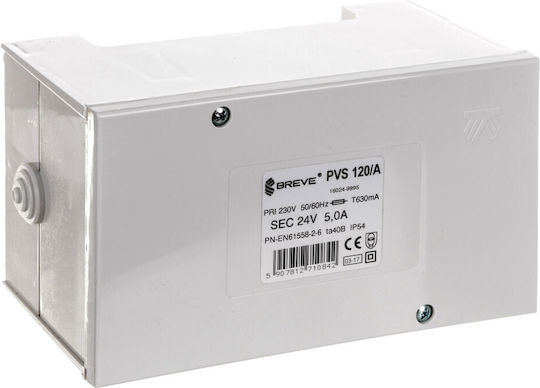

PVS120 transformer 230/24V with protective housing.

For applications requiring protection against electric shock and a high degree of protection IP.

  • Stable, independent or wall-mounted version.
  • ...

PVS120 transformer 230/24V with protective housing.

For applications requiring protection against electric shock and a high degree of protection IP.

  • Stable, independent or wall-mounted version.
  • Insulation class II and protection level IP54.
  • Maximum ambient temperature 40°C.
  • Thermal insulation class B (130°C).
  • Manufactured according to EN 61558-2-4, EN...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

PVS120 transformer 230/24V with protective housing.

For applications requiring protection against electric shock and a high degree of protection IP.

  • Stable, independent or wall-mounted version.
  • Insulation class II and protection level IP54.
  • Maximum ambient temperature 40°C.
  • Thermal insulation class B (130°C).
  • Manufactured according to EN 61558-2-4, EN 61558-2-6.

Technical specifications:

  • Power [VA]: 120
  • Example version: 230/24V
  • A=96mm
  • B=166mm
  • C=91mm
  • D=78mm
  • E=160mm
  • Base: M4
  • Weight [kg]: 2.3
