Schneider Electric Converter Industrial Type ABL6TS06U
Misc Industrial Building Equipment

Schneider Electric Converter Industrial Type ABL6TS06U

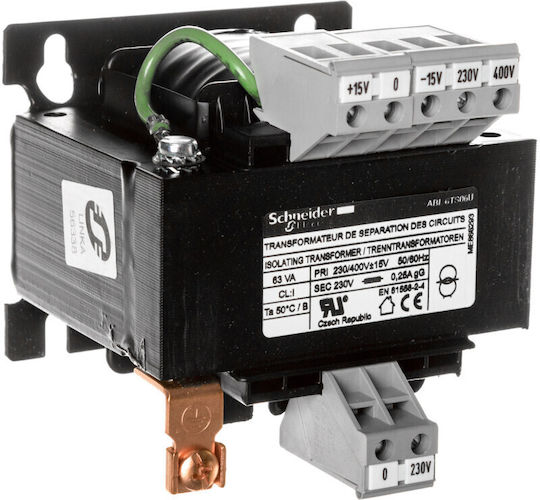

1 Phase Transformer 63VA 230(400)V/230V (ABL6TS06U)

  • Product Type: Safety Isolation Transformer
  • Rated Power: 63 VA
  • Input Voltage: 230 V AC single-phase
  • Output Voltage: 230 V AC
  • Secondary Winding:...

1 Phase Transformer 63VA 230(400)V/230V (ABL6TS06U)

  • Product Type: Safety Isolation Transformer
  • Rated Power: 63 VA
  • Input Voltage: 230 V AC single-phase
  • Output Voltage: 230 V AC
  • Secondary Winding: Single Protective Cover
  • Operating Ambient Temperature: -20...50 °C
  • Efficiency: 84 %
  • Voltage Drop at Rated Load: 1.4 %
  • Protection Type: Overload, Surge Protection,...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

1 Phase Transformer 63VA 230(400)V/230V (ABL6TS06U)

  • Product Type: Safety Isolation Transformer
  • Rated Power: 63 VA
  • Input Voltage: 230 V AC single-phase
  • Output Voltage: 230 V AC
  • Secondary Winding: Single Protective Cover
  • Operating Ambient Temperature: -20...50 °C
  • Efficiency: 84 %
  • Voltage Drop at Rated Load: 1.4 %
  • Protection Type: Overload, Surge Protection, Short-Circuit Protection
  • Connections: Screw Terminals for Input and Output Connection
  • Mounting Method: Via Clips on 35 mm DIN Rail
  • Protection Class: Class B
  • Product Weight: 1.6 kg
  • Protection Level: IP20
  • Dielectric Strength: 2000 V between Winding and Ground

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Converter

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

1 Phase Transformer 63VA 230(400)V/230V (ABL6TS06U)

  • Product Type: Safety Isolation Transformer
  • Rated Power: 63 VA
  • Input Voltage: 230 V AC single-phase
  • Output Voltage: 230 V AC
  • Secondary Winding: Single Protective Cover
  • Operating Ambient Temperature: -20...50 °C
  • Efficiency: 84 %
  • Voltage Drop at Rated Load: 1.4 %
  • Protection Type: Overload, Surge Protection, Short-Circuit Protection
  • Connections: Screw Terminals for Input and Output Connection
  • Mounting Method: Via Clips on 35 mm DIN Rail
  • Protection Class: Class B
  • Product Weight: 1.6 kg
  • Protection Level: IP20
  • Dielectric Strength: 2000 V between Winding and Ground
