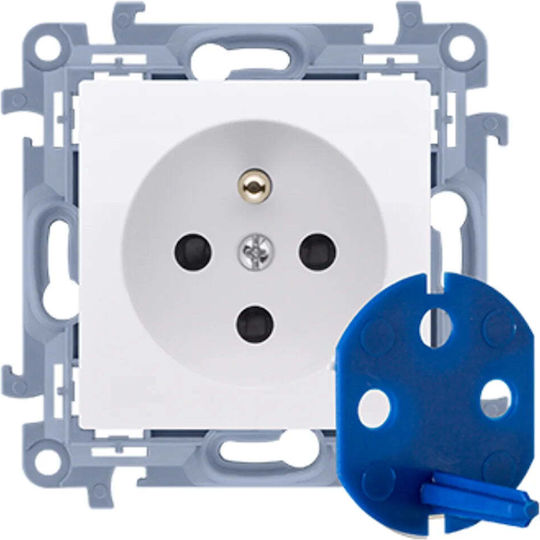

The Kontakt-Simon CGD1.01/11 single flush-mounted socket has an access key and is suitable for connection with earthing. It is connected using screw terminals.
- Type: Flush-mounted power socket
- Number of sockets: 1
- Type: Faceplate
- Special type: With access key
- Colour: White
- Material: Plastic, PC, halogen-free
- Finish: Glossy
- Rated current: 16 A
- Rated voltage: 250 V
- Frequency range: 50–60 Hz
- Protection rating: IP20
- Connection: Screw terminals
- Earthing: With earthing pin
- Installation: Flush-mounted, with claws or screws
- Dimensions: 77 × 77 × 37 mm
- Mounting depth: 26 mm
Dimensions
- Type
- Front
- Number of Sockets
- Single
- Type
- Walled
- USB-A
- No
- USB-C
- No
- Colour
- White
Voltage & Load
- Current Intensity
- 16 A
- Nominal Voltage
- 250 V
Safety & Protection
- Protection Certification
- IP20
- Protection for Children
- No
Additional Features
- Illuminated
- No
- Switch
- No
- with Light Sensor
- No
- Lid
- No
- Special Type
- with Key
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
