OBO Bettermann 3-Poles Inspired T2 Panel Lightning Protection 20kA
Panel Lightning Protection

OBO Bettermann 3-Poles Inspired T2 Panel Lightning Protection 20kA Code: 5094608

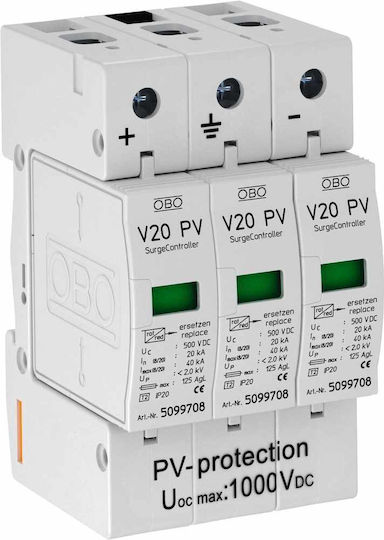

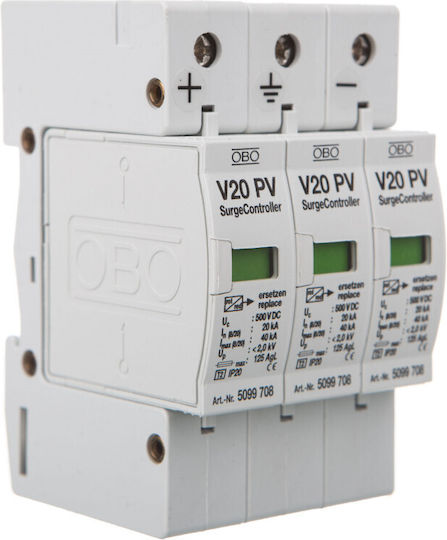

Photovoltaic surge arrester C 3P 20kA 4kV V20-C 3-PH-1000

  • Maximum continuous operating voltage: 1000 V
  • Protection level L-N: 4 kV
  • Protection level L-PE/N-PE: 4 kV
  • Protection level: 4 V
  • Cross-section...

Photovoltaic surge arrester C 3P 20kA 4kV V20-C 3-PH-1000

  • Maximum continuous operating voltage: 1000 V
  • Protection level L-N: 4 kV
  • Protection level L-PE/N-PE: 4 kV
  • Protection level: 4 V
  • Cross-section of connected cable (flexible, multi-wire): up to 35 mm2, from 2.5 mm2
  • Cross-section of rigid cable (single wire, multi-wire): up to 35 mm2, from 2.5 mm2
  • Size: 3...
See full description See full description

Maximum discharge current (ka)

  1. 20

    from 96,70 €

  2. 40

    from 52,45 €

  3. 50

    from 94,86 €

Learn more about invoicing
Review the product
Product report

Description

Description

Photovoltaic surge arrester C 3P 20kA 4kV V20-C 3-PH-1000

  • Maximum continuous operating voltage: 1000 V
  • Protection level L-N: 4 kV
  • Protection level L-PE/N-PE: 4 kV
  • Protection level: 4 V
  • Cross-section of connected cable (flexible, multi-wire): up to 35 mm2, from 2.5 mm2
  • Cross-section of rigid cable (single wire, multi-wire): up to 35 mm2, from 2.5 mm2
  • Size: 3 modules
  • Mounting method: DIN rail 35 mm
  • Activation indication on the device: Acoustic and visual
  • Type: 2
  • Network configuration: TN-S
  • Nominal discharge current - peak value (8/20): 20 kA

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
5094608
Number of Poles
3
Type
T2

Type

T2

It has the ability to discharge current from indirect lightning strikes, network overvoltages, and arming/disarming of coupling devices in an installation. It is installed on the main panel of buildings.
Replacement Cartridge
No
Maximum Discharge Current (kA)
20

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Photovoltaic surge arrester C 3P 20kA 4kV V20-C 3-PH-1000

  • Maximum continuous operating voltage: 1000 V
  • Protection level L-N: 4 kV
  • Protection level L-PE/N-PE: 4 kV
  • Protection level: 4 V
  • Cross-section of connected cable (flexible, multi-wire): up to 35 mm2, from 2.5 mm2
  • Cross-section of rigid cable (single wire, multi-wire): up to 35 mm2, from 2.5 mm2
  • Size: 3 modules
  • Mounting method: DIN rail 35 mm
  • Activation indication on the device: Acoustic and visual
  • Type: 2
  • Network configuration: TN-S
  • Nominal discharge current - peak value (8/20): 20 kA

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
5094608
Number of Poles
3
Type
T2

Type

T2

It has the ability to discharge current from indirect lightning strikes, network overvoltages, and arming/disarming of coupling devices in an installation. It is installed on the main panel of buildings.
Replacement Cartridge
No
Maximum Discharge Current (kA)
20

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

96,70 €
14,00 €   shipping cost
