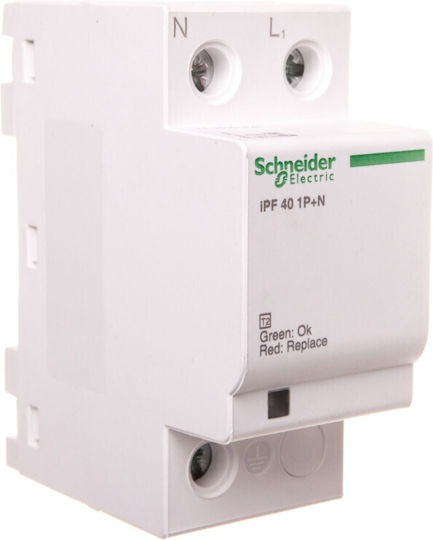

Lightning Rod iPFK40-T2-1N 1+1-pole Type2 40kA (A9L15687)

Main parameters of the Acti 9 product range:

• Product name: Acti 9 iPF K
• Product type: Surge protective device
• Device short name: IPF K
• Device application: Distribution
• Number of poles description: 1P + N
• Remote signaling: None
• Type of surge diverter: Electrical power distribution network
• Grounding system: TN-STT
• Lightning rod technology: MOV+GDT
• Nominal operating voltage: 230 V (+/- 10%) alternating current (AC) 50/60 Hz
• Discharge nominal current:
  • Common mode: 15 kA L/PE
  • Common mode: 15 kA N/PE
  • Differential mode: 15 kA L/N
• Maximum discharge current:
  • Common mode: 40 kA L/PE
  • Common mode: 40 kA N/PE
  • Differential mode: 40 kA L/N
• Maximum permanent operating voltage [Uc]:
  • Common mode: 260V N/PE
  • Differential mode: 340V L/N
• Voltage protection level [Above]:
  • 1.5 kV type 2 common mode N/PE
  • 1.5 kV type 2 differential mode L/N
• Occasional surge [Ut] Resistance:
  • 337 V L/N for 5 s
  • 442 V L/PE for 5 s
  • 1200 V N/PE for 200 ms
  • 1453 V L/PE for 200 ms
• Type of additional protection: Relative circuit breaker iK60N 40 A curve C - Icu 6 kA
• Connected fuse: gG 63 A - Icu 25 kA
• Short-circuit resistance: 25 kA
• Local signaling: LED color: green/red
• Signaling circuit voltage: 0.25 A/250 V AC 50/60 Hz
• Assembly method: Snap-in
• Mounting base: DIN rail
• Width in units: 9 mm 4
• Height: 81 millimeters
• Width: 36 millimeters
• Depth: 69 millimeters
• Product weight: 210 grams
• Color: White (RAL 9003)
