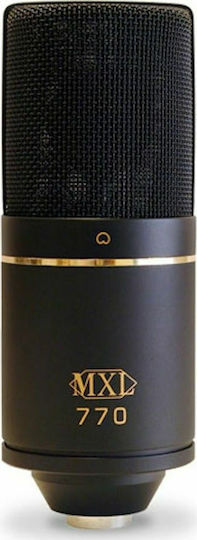

MXL 770 Condenser Microphone XLR Shock Mounted for Vocals
Microphones

MXL 770 Condenser Microphone XLR Shock Mounted for Vocals

Professional large-diaphragm condenser microphone MXL 770, multi-purpose, ideal for vocal recordings. Delivers consistent low frequencies and clear highs. Includes shock mount and hard carrying and...

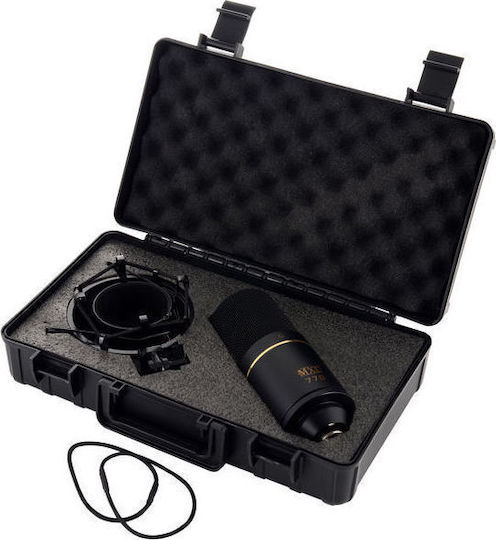

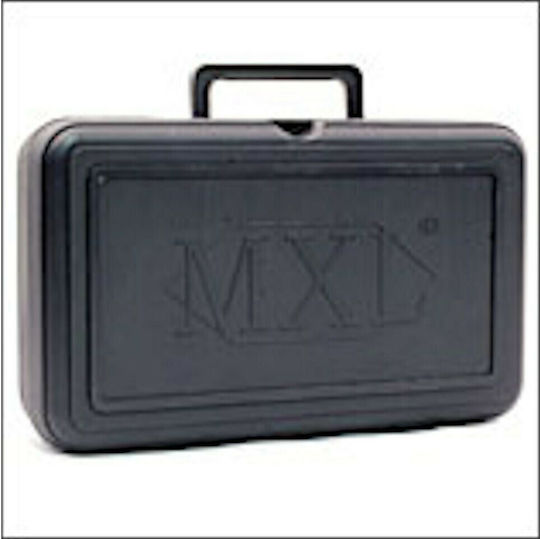

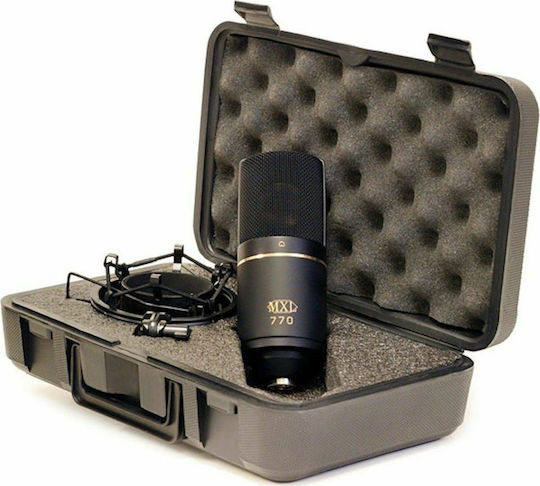

Professional large-diaphragm condenser microphone MXL 770, multi-purpose, ideal for vocal recordings. Delivers consistent low frequencies and clear highs. Includes shock mount and hard carrying and storage case.

See full description See full description

  • Type (Directivity)

    Unidirectional (Cardioid)

    Cardioid: Captures sound primarily from the front, reducing sounds from the sides and rear. Ideal for vocals, podcasting, and live recordings.
  • Usage Voice, Computer (Gaming & Streaming), Musical Instruments, Studio

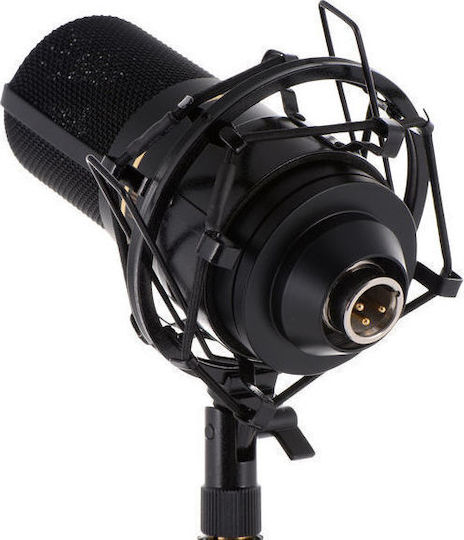

  • Placement Shock Mounted
  • Connectivity XLR
  • See all
109 00 €
Delivery by Thu, 06 Aug
14,00 €   shipping cost
Sent from Greece
From Midi Club
Greece
1 piece
See Audio on the page of Midi Club
Product report

Description

Description

Professional large-diaphragm condenser microphone MXL 770, multi-purpose, ideal for vocal recordings. Delivers consistent low frequencies and clear highs. Includes shock mount and hard carrying and storage case.

Technical Architecture & Capsule

The microphone features a 22mm capsule with a gold-plated diaphragm of 6 micron thickness. It operates on the pressure gradient principle and has a cardioid polar pattern. The preamplification is based on FET technology, providing a balanced signal output. The internal wiring is implemented exclusively with MOGAMI cables, ensuring signal integrity. It requires Phantom Power 48V (± 4V) and the body dimensions are 60 mm x 154 mm.

Sound Performance & Signal

The frequency response ranges from 30 Hz to 20 kHz, with a sensitivity of 15mV/Pa and a nominal impedance of 150 Ohm. The equivalent noise level is measured at 20 dB (A-weighted IEC 268-4) and the signal-to-noise ratio (S/N Ratio) is 74 dB. The microphone handles a maximum sound pressure level (Max SPL) of up to 137 dB for a total harmonic distortion (THD) of 0.5%, allowing safe recording of sources with high dynamics.

Filters & Customization

The microphone body incorporates control switches for adapting to recording conditions. A selectable attenuator (Pad) -10 dB is provided for handling extreme volume levels without overloading the preamp. Additionally, it features a high-pass filter (High Pass Filter) with a 6 dB/octave slope at 150Hz, which minimizes interference from structural noise and controls the proximity effect during recording.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Mode of Operation
Condenser (Large Diaphragm)

Mode of Operation

Condenser (Large Diaphragm)
Warm and full sound with emphasis on vocals. Mainly used in studios for vocals and solo instruments.
Directivity
Unidirectional (Cardioid)

Directivity

Unidirectional (Cardioid)

Cardioid: Captures sound primarily from the front, reducing sounds from the sides and rear. Ideal for vocals, podcasting, and live recordings.
Frequency
30 - 20000 Hz

Frequency

Indicates the frequency range that a microphone can capture and is expressed in Hertz (Hz). The more balanced the range, the more natural and clear the sound.

Usage examples:

  • 100 – 10,000 Hz to 200 – 12,000 Hz: Emphasis on speech intelligibility, with limited low and very high frequencies.
  • 50 – 14,000 Hz to 80 – 16,000 Hz: Balance of volume and clarity. Ideal for live performances and dynamic microphones.
  • 40 – 15,000 Hz to 50 – 18,000 Hz: Rich, natural vocal sound. Suitable for podcasts, radio, and streaming.
  • 20 – 18,000 Hz to 20 – 20,000 Hz: Full spectrum with high detail and "air". Ideal for studio recording.
  • Below 20 Hz & above 20,000 Hz: Extended technical range for specialized studio applications.
Impendance
150 ohm

Impendance

Indicates how "easily" the microphone transmits its signal to the equipment (mixer, sound card, amplifier). It is expressed in Ohms (Ω).

  • Low impedance (≤ 600 Ω): Stable signal, less noise, ideal for professional equipment and long cable runs.
  • Medium impedance (600 – 1,000 Ω): Good balance, common in live and general use.
  • High impedance (> 1,000 Ω): More sensitive to loss and noise, usually found in older or specialized equipment.
Sensitivity
15 mV/Pa

Sensitivity

The sensitivity of a microphone indicates how strong the signal it produces is when recording a sound. It is measured in mV/Pa or dBV/Pa.

  • High sensitivity: The microphone can capture very low sounds, but it may be more sensitive to ambient noise.
  • Low sensitivity: It records louder sound sources without distortion, but requires more amplification from the preamp.

In general, condenser microphones have higher sensitivity than dynamic ones.

Max SPL
137 dB

Max SPL

Max SPL (Maximum Sound Pressure Level) is the maximum sound pressure level (in dB) that a microphone can withstand before it starts to distort the sound.

  • High Max SPL (e.g., 140-160dB): Ideal for recording loud sources such as drums, amplified guitar, or live concerts.
  • Lower Max SPL (e.g., 120dB): Suitable for vocals and softer recordings.

The higher the Max SPL, the louder the sounds it can capture without distortion.
Signal-to-Noise Ratio (SNR)
74 dB

Signal-to-Noise Ratio (SNR)

Indicates the difference between the useful signal and the microphone's noise. The higher the value in dB, the clearer the sound. A microphone with a low SNR may sound “noisy,” especially in quiet environments or when recording low-volume sounds. On the other hand, a high SNR means that noise is minimal compared to the sound you want to capture, offering a more professional, clear, and detailed result—ideal for studio, vocals, or high-quality recording.

  • 35 – 60 dB (Low SNR): Noticeable noise is present. Suitable for casual use or loud sources.
  • 60 – 90 dB (Medium SNR): Good signal-to-noise balance. Suitable for live performances and general use.
  • 90 – 110 dB (High SNR): Very clear signal with minimal noise. Ideal for studio, vocals, and high-quality recording.
Connectivity
XLR

General Characteristics

Device Group
Voice, Computer (Gaming & Streaming), Musical Instruments, Studio
Placement
Shock Mounted
Vintage
No
Set
No
Color
Black

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (1)

Reviews

5.0
1
5.0
Review this product
  1. 1
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

Description & Specifications

Professional large-diaphragm condenser microphone MXL 770, multi-purpose, ideal for vocal recordings. Delivers consistent low frequencies and clear highs. Includes shock mount and hard carrying and storage case.

Technical Architecture & Capsule

The microphone features a 22mm capsule with a gold-plated diaphragm of 6 micron thickness. It operates on the pressure gradient principle and has a cardioid polar pattern. The preamplification is based on FET technology, providing a balanced signal output. The internal wiring is implemented exclusively with MOGAMI cables, ensuring signal integrity. It requires Phantom Power 48V (± 4V) and the body dimensions are 60 mm x 154 mm.

Sound Performance & Signal

The frequency response ranges from 30 Hz to 20 kHz, with a sensitivity of 15mV/Pa and a nominal impedance of 150 Ohm. The equivalent noise level is measured at 20 dB (A-weighted IEC 268-4) and the signal-to-noise ratio (S/N Ratio) is 74 dB. The microphone handles a maximum sound pressure level (Max SPL) of up to 137 dB for a total harmonic distortion (THD) of 0.5%, allowing safe recording of sources with high dynamics.

Filters & Customization

The microphone body incorporates control switches for adapting to recording conditions. A selectable attenuator (Pad) -10 dB is provided for handling extreme volume levels without overloading the preamp. Additionally, it features a high-pass filter (High Pass Filter) with a 6 dB/octave slope at 150Hz, which minimizes interference from structural noise and controls the proximity effect during recording.

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Mode of Operation
Condenser (Large Diaphragm)

Mode of Operation

Condenser (Large Diaphragm)
Warm and full sound with emphasis on vocals. Mainly used in studios for vocals and solo instruments.
Directivity
Unidirectional (Cardioid)

Directivity

Unidirectional (Cardioid)

Cardioid: Captures sound primarily from the front, reducing sounds from the sides and rear. Ideal for vocals, podcasting, and live recordings.
Frequency
30 - 20000 Hz

Frequency

Indicates the frequency range that a microphone can capture and is expressed in Hertz (Hz). The more balanced the range, the more natural and clear the sound.

Usage examples:

  • 100 – 10,000 Hz to 200 – 12,000 Hz: Emphasis on speech intelligibility, with limited low and very high frequencies.
  • 50 – 14,000 Hz to 80 – 16,000 Hz: Balance of volume and clarity. Ideal for live performances and dynamic microphones.
  • 40 – 15,000 Hz to 50 – 18,000 Hz: Rich, natural vocal sound. Suitable for podcasts, radio, and streaming.
  • 20 – 18,000 Hz to 20 – 20,000 Hz: Full spectrum with high detail and "air". Ideal for studio recording.
  • Below 20 Hz & above 20,000 Hz: Extended technical range for specialized studio applications.
Impendance
150 ohm

Impendance

Indicates how "easily" the microphone transmits its signal to the equipment (mixer, sound card, amplifier). It is expressed in Ohms (Ω).

  • Low impedance (≤ 600 Ω): Stable signal, less noise, ideal for professional equipment and long cable runs.
  • Medium impedance (600 – 1,000 Ω): Good balance, common in live and general use.
  • High impedance (> 1,000 Ω): More sensitive to loss and noise, usually found in older or specialized equipment.
Sensitivity
15 mV/Pa

Sensitivity

The sensitivity of a microphone indicates how strong the signal it produces is when recording a sound. It is measured in mV/Pa or dBV/Pa.

  • High sensitivity: The microphone can capture very low sounds, but it may be more sensitive to ambient noise.
  • Low sensitivity: It records louder sound sources without distortion, but requires more amplification from the preamp.

In general, condenser microphones have higher sensitivity than dynamic ones.

Max SPL
137 dB

Max SPL

Max SPL (Maximum Sound Pressure Level) is the maximum sound pressure level (in dB) that a microphone can withstand before it starts to distort the sound.

  • High Max SPL (e.g., 140-160dB): Ideal for recording loud sources such as drums, amplified guitar, or live concerts.
  • Lower Max SPL (e.g., 120dB): Suitable for vocals and softer recordings.

The higher the Max SPL, the louder the sounds it can capture without distortion.
Signal-to-Noise Ratio (SNR)
74 dB

Signal-to-Noise Ratio (SNR)

Indicates the difference between the useful signal and the microphone's noise. The higher the value in dB, the clearer the sound. A microphone with a low SNR may sound “noisy,” especially in quiet environments or when recording low-volume sounds. On the other hand, a high SNR means that noise is minimal compared to the sound you want to capture, offering a more professional, clear, and detailed result—ideal for studio, vocals, or high-quality recording.

  • 35 – 60 dB (Low SNR): Noticeable noise is present. Suitable for casual use or loud sources.
  • 60 – 90 dB (Medium SNR): Good signal-to-noise balance. Suitable for live performances and general use.
  • 90 – 110 dB (High SNR): Very clear signal with minimal noise. Ideal for studio, vocals, and high-quality recording.
Connectivity
XLR

General Characteristics

Device Group
Voice, Computer (Gaming & Streaming), Musical Instruments, Studio
Placement
Shock Mounted
Vintage
No
Set
No
Color
Black

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
