Eaton Automatic Circuit Breaker 2A Triple-pole AC 278861
Automatic Circuit Breaker

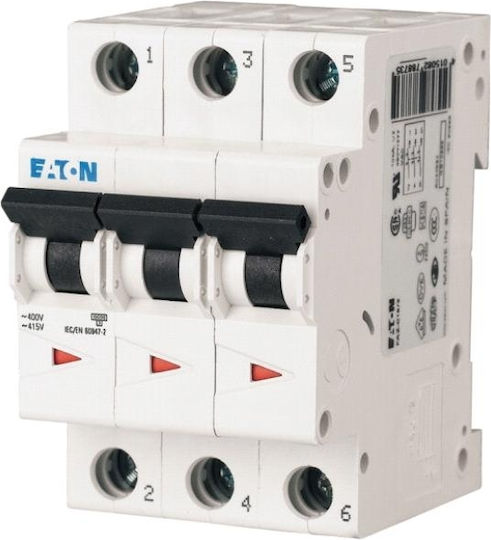

Eaton Automatic Circuit Breaker 2A Triple-pole AC 278861

The Eaton switch is used in residential and public buildings, as well as in industry. It protects the electrical installation from the effects of short circuits and overloads. This device features a...

The Eaton switch is used in residential and public buildings, as well as in industry. It protects the electrical installation from the effects of short circuits and overloads. This device features a convenient lift clamp system that ensures a stable connection of the connecting wires.

  • Type: FAZ
  • Rated voltage: 230/400V AC
  • Rated current: 2A
  • Short-circuit...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

The Eaton switch is used in residential and public buildings, as well as in industry. It protects the electrical installation from the effects of short circuits and overloads. This device features a convenient lift clamp system that ensures a stable connection of the connecting wires.

  • Type: FAZ
  • Rated voltage: 230/400V AC
  • Rated current: 2A
  • Short-circuit current: 15 kA
  • Number of poles: 3P
  • Cross-section of connecting wires: 1-25mm2
  • Mounting: TS35mm rail
  • Protection degree: IP20
  • Contact position indicator: red/green

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Poles
3
Rated Current
2 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Eaton switch is used in residential and public buildings, as well as in industry. It protects the electrical installation from the effects of short circuits and overloads. This device features a convenient lift clamp system that ensures a stable connection of the connecting wires.

  • Type: FAZ
  • Rated voltage: 230/400V AC
  • Rated current: 2A
  • Short-circuit current: 15 kA
  • Number of poles: 3P
  • Cross-section of connecting wires: 1-25mm2
  • Mounting: TS35mm rail
  • Protection degree: IP20
  • Contact position indicator: red/green

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
3
Rated Current
2 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
