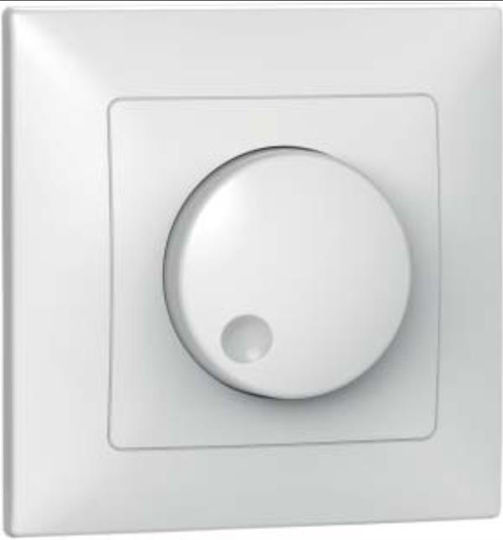

The Master Electric DM-400L/N recessed rotary dimmer switch adjusts the brightness of LED filament, dimmable LED, CFL and halogen lamps, as well as dimmable drivers, up to a maximum load of 400 W. Digital Phase-Cut technology allows you to switch between Leading Edge and Trailing Edge, depending on the connected load. Soft Start and minimum brightness adjustment provide additional control options.
Lighting can be controlled directly from the device or using one or more push-buttons connected in parallel. The dimmer features electronic overvoltage and overheat protection with automatic reset, and fits into a 40 mm-deep switch box.
- Installation: Recessed
- Operation: Rotary
- Compatibility: Universal
- Type: Complete unit
- Power: Up to 400 W
- Supply voltage: 230 V
- Technology: Digital Phase-Cut (IGBT), 1 channel
- Phase-Cut adjustment: Leading Edge and Trailing Edge
- Lamps and loads: LED filament, dimmable LED, CFL, halogen and dimmable drivers
- Start function: Soft Start
- Control: Directly from the device or using push-buttons connected in parallel at one or more locations
- Protection: Electronic overvoltage and overheat protection with automatic reset
- Standby consumption: Up to 1 W
- Mains frequency: 50 Hz
- Operating temperature: From -20 °C to +50 °C
- Storage temperature: From -20 °C to +60 °C
- Terminal conductors: Solid or stranded, 1 mm to 2.5 mm in diameter
- Colour: White
- Product Number
- DM-400L/N
Dimensions
- Placement
- Recessed
- Compatibility
- Universal
- Type
- Complete
- Mode
- Rotary
- Power
- 400 W
- Colour
- White
- Power Supply
- 230V
Additional Features
- Illuminated
- No
- Aller Retour
- No
Professional Control
- DMX512
- No
- DALI
- No
