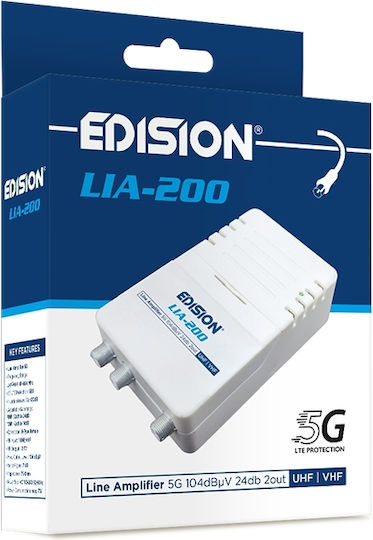

The Edision line amplifier boosts DVB-T/T2 television and FM radio signals over a coaxial cable for distribution to TVs. The shared UHF/VHF/FM input and two outputs allow two lines to be connected, while amplification can be adjusted independently for each band. It features a 5G LTE interference rejection filter and circuitry housed in a metal enclosure for protection against electromagnetic interference. It is designed for indoor installation.

• Type: Line amplifier
• Signals: DVB-T/T2, FM
• Frequency range: VHF/FM 47–318 MHz, UHF 470–694 MHz
• 5G LTE interference protection: Yes
• 5G interference rejection: <20 dB
• RF inputs: 1 shared UHF/VHF/FM input
• RF outputs: 2
• Maximum output level: 104 dBμV
• Gain adjustment: UHF 12–24 dB, VHF/FM -2–14 dB
• Noise figure: 7 dB
• Impedance: 75 Ω
• Connection: F-type female connector
• Power supply: Built-in 220 V power supply with 2-pin EU plug
• Operating voltage: AC 100–240 V, 50/60 Hz
• Maximum power consumption: 7 W
• Operating temperature: 0 °C to +50 °C
• Storage temperature: -20 °C to +70 °C
• Ambient humidity: 10%–85% RH, non-condensing
• Dimensions with enclosure: 70 × 125 × 35 mm
• Weight: 0.23 kg
• Enclosure color: White
• Package contents: LIA-200 line amplifier, plastic adjustment screwdriver, mounting screws and wall plugs, user manual in GR/EN/DE/ES/IT/FR
