DC DC Boost Conversion Module 7W that converts voltage from 2.6-5.5V to 5V.

Description:

• Operating frequency: 1MHz.
• Efficiency up to 93% (typically 84%-91%).
• Standby current: 190µA.
• Current limit programming (0.5-2.5A, Default 1.8A).
• Dimensions: 21 x 11 x 4mm.
• Weight: 1.5g.
• Protection: Overcurrent Protection (OCP), Overvoltage Protection (OVP), Short Circuit Protection (SCP), Overtemperature Protection (OTP).
• Output 5V: DC input voltage 2.6 ~ 4.5V, DC output 5V±3% Maximum output: 5V/1300MA.

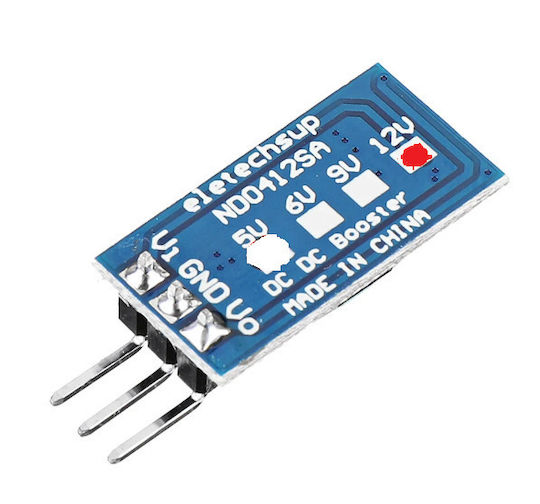

Pin Description:

• Vi: Positive input (+).
• GND: Negative input and output (GND/-).
• Vo: Positive output (+).

Applications:

• Battery-powered equipment.
• Instruments, multimeters.
• Available on breadboard, Stm32, LCD, LED.
• Small power motors.
• PTZ cameras, webcam, IP Camera.
• Toys cars, boats, model aircrafts.
• Power bank, LED, motor.
• Solar energy.
• WIFI Router, PLC, RS485 devices.
• Lithium power supply equipment.

Attention: This is a DC-DC voltage conversion module. It should be noted when in use:

• The input voltage cannot be greater than the maximum input value.
• The output power cannot exceed the maximum load for an extended period.
• The input power must be greater than the output due to the unit's power consumption.
