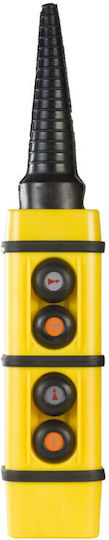

The KS line control box is used in industry and construction for controlling electric hoists, machine tools, remote-control devices, and other machinery. It is designed for electrical circuits with switch voltage up to 400 V alternating current and 220 V direct current.

The enclosure is made of high-quality insulating material, which possesses high dielectric and mechanical strength. The cover of the product includes a filling box for the introduction and sealing of the cable, as well as the possibility of hanging on an external support rope. It also features a clamp for connecting the cable and a patented lock with a key for the safety of the cartridge.

• Degree of protection: IP 65
• Test voltage: 2.5 kV
• Nominal insulation voltage: 400 V AC
• Nominal switch voltage: 400 V AC
• Signaling voltage: 12, 24 V
• Thermal current Ith: 10 A
• Number of control positions: 4
• Number of speeds: 2
• Housing material: Plastic material
• Suitable for emergency stop operation: NO
• Type of movement: Downward – upward
• Nominal operational current in AC-15, 600 V: 1.0 A
