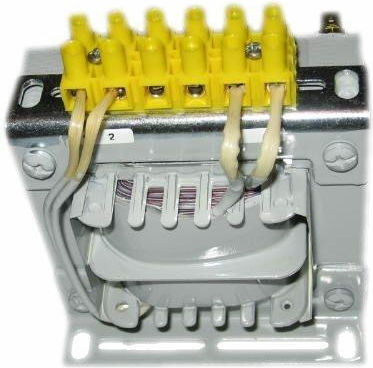

Integrated single-phase safety and isolation transformers manufactured according to the standards PN-EN 61558-1, PN-EN 61558-2-4, PN-EN 61558-2-6, designed for use in low voltage industrial and electrical installations, in electrical devices, panels, and distribution boards.

Construction:

• EI core
• Winding in the insulating body
• Brackets for mounting the transformer
• Terminal strip for external connections

Parameters:

• Power: 100VA
• Input voltage (range): 230V
• Output voltage (range): 24V
• Frequency: 50/60Hz
• Insulation class: B (25-800VA)
• Ambient temperature: 45°C
• Protection level: IP 00
• Dimensions: 76x96x112 mm
