The Proxxon 2814480MA gas soldering iron also functions as a pyrography tool. It features piezoelectric ignition and an adjustable temperature range of 500 to 1,300 °C. It can be used for soldering, hot cutting, pyrography and shrinking heat-shrink tubing. Without a tip, it works as a blowtorch for brazing delicate components, with a flame temperature of up to 1,300 °C; with tips fitted, the temperature reaches up to 500 °C.
It has a controlled gas and air supply, as well as a gas flow switch. The 20 ml tank can be refilled using butane lighter refill canisters.
- Power source: Gas
- Ignition: Piezoelectric
- Temperature adjustment: 500–1,300 °C
- Gas tank capacity: 20 ml
- Applications: Soldering, hot cutting, pyrography and shrinking heat-shrink tubing

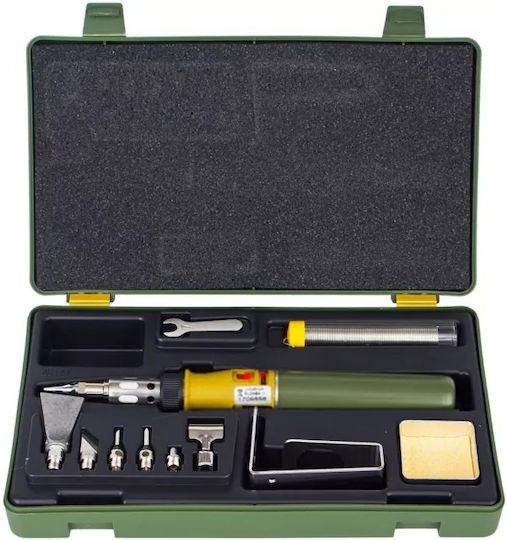

- Accessories: Wax and varnish scraper blade tip, plastic cutting blade tip, two pyrography tips (flat and straight), soldering tip, round hot-air nozzle, nozzle for heat-shrink tubing, soldering tray, tray with sponge and 7 mm wrench
- Case: Polypropylene plastic
Main Specifications
- Type
- Soldering Iron
- Power Source
- Gas
Features & Functions
- Maximum Temperature
- 1300 °C
- Temperature Setting
- No
Soldering Stations
- Display Screen
- No
Additional Specifications
- Carrying Case
- Case
- LED
- No
Battery Specifications
- Solo
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
