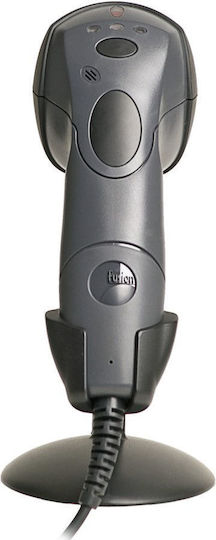

The Honeywell Fusion MS3780 handheld scanner uses laser technology for omnidirectional single-line scanning and reads 1D barcodes, including GS1 DataBar. Automatic detection allows switching between handheld and hands-free modes. With CodeGate technology, the operator aims at the desired code and completes data transmission with the press of a button.
The adjustable stand tilts up to 50° and has three locking positions, while the scanner supports simultaneous deactivation of EAS RF tags. The scan rate is 1,333 scans per second.
- Type: Omnidirectional handheld scanner
- Scanning technology: Laser
- Barcode reading: 1D
- Symbologies: GS1 DataBar-14, GS1 DataBar Expanded, GS1 DataBar Limited
- Technology: CodeGate
- Scan range / depth of field: 1.18 in - 5.91 in
- Scan range / field width: 5 mil
- Resolution: 5 mil (0.127 mm)
- Scan rate: 1,333 lines/s
- Compatibility: Windows, Android, iOS
- Operating voltage: 5 VDC ± 0.25 V
- Operating power consumption: 1.4 W (275 mA @ 5 V)
- Standby power consumption: 1.0 W (200 mA @ 5 V)
- Ambient light: 4,842 lux
- Operating temperature: -20°C to 40°C
- Storage temperature: -40°C to 60°C
- Humidity: 5% to 95%
- Drop resistance: From 1.5 m
- Protection: Sealed to protect against airborne organisms
- Dimensions: 189 x 65 x 73 mm
- Weight: 195 g
- Product Number
- 005-023-0001
- Connectivity
- -
- Scanner Type
- Handheld Scanner
- Readability
- Linear Imager (1D)
