Thyssenkrupp Welding Machine Inverter MAG / MIG / TIG
Welding Machines

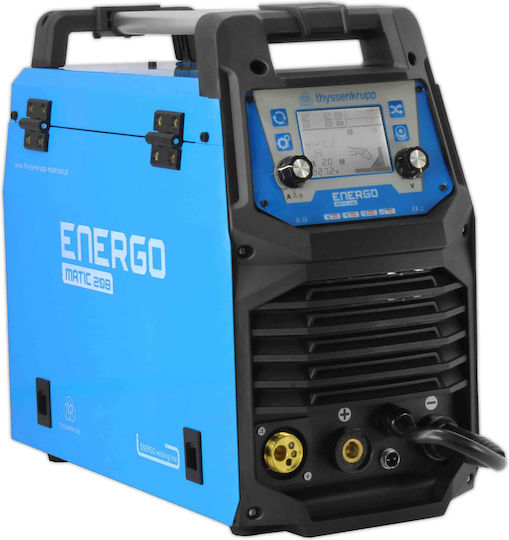

Thyssenkrupp Welding Machine Inverter MAG / MIG / TIG

Synergic Machine Thyssenkrupp energomatic 208. Welding methods MIG/MAG, MMA, TIG DC LIFT AC230V power 200A efficiency 40%

Basic Equipment:

  • Thyssenkrupp energomatic 208 Welding Machine
  • 3m 15A wire...

Synergic Machine Thyssenkrupp energomatic 208. Welding methods MIG/MAG, MMA, TIG DC LIFT AC230V power 200A efficiency 40%

Basic Equipment:

  • Thyssenkrupp energomatic 208 Welding Machine
  • 3m 15A wire clamp
  • 2m MMA electrode clamp
  • 2m grounding clamp
  • User manual - various consumable nozzles, etc.

The synergic welding machine energomatic 208 is an innovative...

See full description See full description

  • Duty Cycle

    The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

    2.

    For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.

  • Power Supply Voltage

    230

    It is the supply voltage that the machine requires from the electrical grid.
  • See all
514 60 €
Delivery by Fri, 07 Aug
47,00 €   shipping cost
Sent from Greece
From Oxytools
Greece
10 pieces
See Tools on the page of Oxytools
Review the product
Product report

Description

Description

Synergic Machine Thyssenkrupp energomatic 208. Welding methods MIG/MAG, MMA, TIG DC LIFT AC230V power 200A efficiency 40%

Basic Equipment:

  • Thyssenkrupp energomatic 208 Welding Machine
  • 3m 15A wire clamp
  • 2m MMA electrode clamp
  • 2m grounding clamp
  • User manual - various consumable nozzles, etc.

The synergic welding machine energomatic 208 is an innovative machine for welding steel and non-ferrous metals. Mig / Mag MMA TIG LIFT Easy polarity change for flux wire use. The modern LCD screen allows you to easily and quickly adjust the welding voltage and manage the device's functions. The machine has the capability to weld low and medium alloy steel, stainless steel, aluminum, copper, etc.

Technical Specifications:

  • Power supply 230V 50/60HZ
  • Power 7.5 KW
  • Open circuit voltage 60V
  • Insulation class F
  • Protection class IP21S
  • Welding current 20-200A
  • Efficiency 200A 40% 142A 60% 118A 100%
  • Feeding speed 2-15m/min
  • Machine dimensions: 620X320X450
  • Machine weight 14Kg
  • Packaging weight 18kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
MAG, MIG, TIG

Type

MIG

The easiest welding method even for a beginner. 2. If the wire to be used does not have a special coating (flux), it should be connected to an external gas cylinder (e.g. argon, CO2).

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".
Operation Cycle (max Ampere)
40 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
230 V

Supply Voltage: 230


It is the supply voltage that the machine requires from the electrical grid.
Weight
14000 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
No
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
No
Anti Stick
No
Arc Force
No
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Synergic Machine Thyssenkrupp energomatic 208. Welding methods MIG/MAG, MMA, TIG DC LIFT AC230V power 200A efficiency 40%

Basic Equipment:

  • Thyssenkrupp energomatic 208 Welding Machine
  • 3m 15A wire clamp
  • 2m MMA electrode clamp
  • 2m grounding clamp
  • User manual - various consumable nozzles, etc.

The synergic welding machine energomatic 208 is an innovative machine for welding steel and non-ferrous metals. Mig / Mag MMA TIG LIFT Easy polarity change for flux wire use. The modern LCD screen allows you to easily and quickly adjust the welding voltage and manage the device's functions. The machine has the capability to weld low and medium alloy steel, stainless steel, aluminum, copper, etc.

Technical Specifications:

  • Power supply 230V 50/60HZ
  • Power 7.5 KW
  • Open circuit voltage 60V
  • Insulation class F
  • Protection class IP21S
  • Welding current 20-200A
  • Efficiency 200A 40% 142A 60% 118A 100%
  • Feeding speed 2-15m/min
  • Machine dimensions: 620X320X450
  • Machine weight 14Kg
  • Packaging weight 18kg

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
MAG, MIG, TIG

Type

MIG

The easiest welding method even for a beginner. 2. If the wire to be used does not have a special coating (flux), it should be connected to an external gas cylinder (e.g. argon, CO2).

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".
Operation Cycle (max Ampere)
40 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
230 V

Supply Voltage: 230


It is the supply voltage that the machine requires from the electrical grid.
Weight
14000 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
No
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
No
Anti Stick
No
Arc Force
No
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
