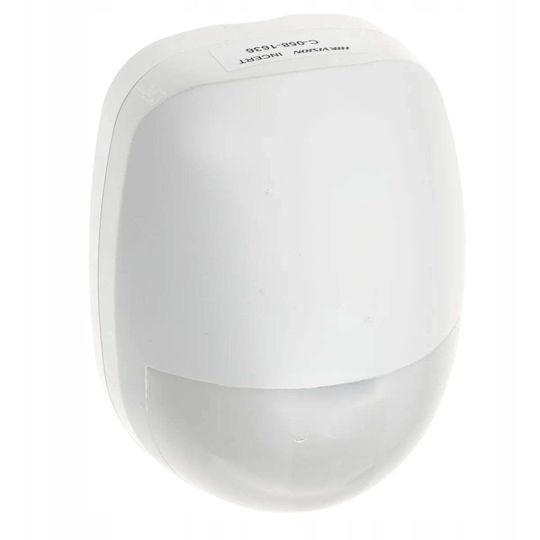

Hikvision Wired Curtain Motion Sensor Infrared Detection 6.3° Scope 15m
Motion Sensors

Hikvision Wired Curtain Motion Sensor Infrared Detection 6.3° Scope 15m

The Hikvision DS-PDC15-EG2 wired infrared curtain motion detector detects movement in a narrow beam, with a 6.3° angle and a range of 15 m. It is designed to protect entrances, windows, corridors, and...

The Hikvision DS-PDC15-EG2 wired infrared curtain motion detector detects movement in a narrow beam, with a 6.3° angle and a range of 15 m. It is designed to protect entrances, windows, corridors, and passageways in AX Hybrid PRO systems.

Digital temperature compensation helps maintain reliable detection in changing environmental conditions, while the sealed...

See full description See full description

Top specs

  • Login

    Wired

    It connects to the installation system via cable.

  • Detection Type

    Infrared

    Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.

  • Range

    The range refers to the maximum distance in meters within which it can detect motion.

  • Detection Angle

    The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.

  • Curtain

    With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.

    1
  • See all

Learn more about invoicing
Review the product
Product report

Description

Description

The Hikvision DS-PDC15-EG2 wired infrared curtain motion detector detects movement in a narrow beam, with a 6.3° angle and a range of 15 m. It is designed to protect entrances, windows, corridors, and passageways in AX Hybrid PRO systems.

Digital temperature compensation helps maintain reliable detection in changing environmental conditions, while the sealed optical system prevents insects from entering and reduces false alarms. It supports selectable EOL resistors and reverse polarity protection. It is wall-mounted at a height of 2.4–3.6 m.

  • Detection type: Infrared (PIR)
  • Beam type: Curtain
  • Detection angle: 6.3°
  • Range: 15 m
  • Connection: Wired
  • Mounting: Wall-mounted
  • Installation height: 2.4–3.6 m
  • Power supply: 9–16 V DC
  • Operating temperature: -10 °C to +55 °C
  • Dimensions: 65.4 × 86.8 × 45.5 mm
  • Weight: 0.068 kg
  • Compatibility: AX Hybrid PRO systems

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Detection Type
Infrared

Detection Type

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.
Detection Angle
6.3 °

Detection Angle

The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
Scope
15 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wired

Connector

Wired

It connects to the installation system via cable.
Battery
No

Battery

Powered by battery.

Additional Features

Antimasking
No

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
No

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
Yes

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Wall
Recessed
No
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Hikvision DS-PDC15-EG2 wired infrared curtain motion detector detects movement in a narrow beam, with a 6.3° angle and a range of 15 m. It is designed to protect entrances, windows, corridors, and passageways in AX Hybrid PRO systems.

Digital temperature compensation helps maintain reliable detection in changing environmental conditions, while the sealed optical system prevents insects from entering and reduces false alarms. It supports selectable EOL resistors and reverse polarity protection. It is wall-mounted at a height of 2.4–3.6 m.

  • Detection type: Infrared (PIR)
  • Beam type: Curtain
  • Detection angle: 6.3°
  • Range: 15 m
  • Connection: Wired
  • Mounting: Wall-mounted
  • Installation height: 2.4–3.6 m
  • Power supply: 9–16 V DC
  • Operating temperature: -10 °C to +55 °C
  • Dimensions: 65.4 × 86.8 × 45.5 mm
  • Weight: 0.068 kg
  • Compatibility: AX Hybrid PRO systems

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Detection Type
Infrared

Detection Type

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.
Detection Angle
6.3 °

Detection Angle

The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
Scope
15 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wired

Connector

Wired

It connects to the installation system via cable.
Battery
No

Battery

Powered by battery.

Additional Features

Antimasking
No

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
No

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
Yes

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Wall
Recessed
No
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
