CONFLEX Ø16 ISR Configurable Corrugated Conduit (spiral) 2041016 KOUVIDIS

Features:

• CONDUR – CONFLEX conduit system

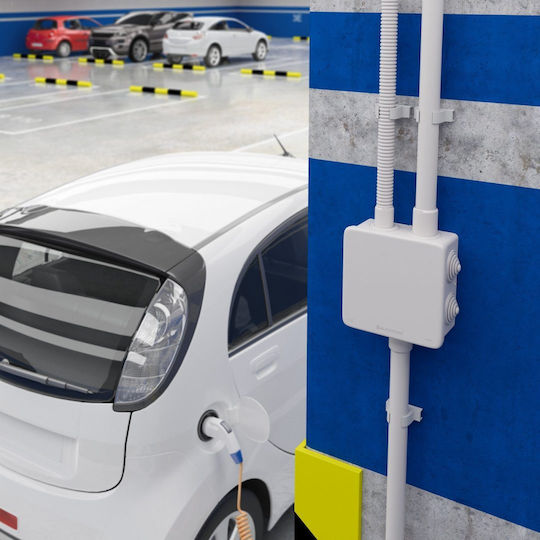

• Field of application: Intended for surface or embedded electrical installations with high mechanical demands
• Increased protection measures for industrial spaces and large building projects
• Suitable for outdoor applications and power generation stations
• High impact and low temperature resistance

Application standard: EN 61386.22

Compliance directives: 2014/35/EU (LVD), 2011/65/EU (RoHS)

Color: RAL 7035 Light Grey

Nominal diameter: Based on outer diameter (DN/OD)

Ingress protection rating: min IP 65

• Compression resistance class: 1250Nt/5cm
• Impact resistance: 6J (at -25°C)
• Minimum application temperature: -25°C
• Maximum application temperature: +60°C
• Bending resistance: Configurable
• Electrical properties with electrical insulation characteristics
• Resistance to ingress of solid objects: min IP65
• Resistance to water ingress: min IP65
• Corrosion resistance: Not applicable
• Flame propagation resistance: Does not propagate flame

Recommended field of application:

• Type: Code Ø16 2001016
• Dimensions: Load capacity - Flame propagation resistance without specific references
