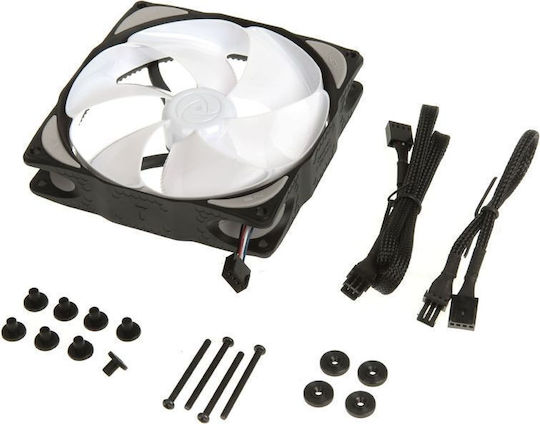

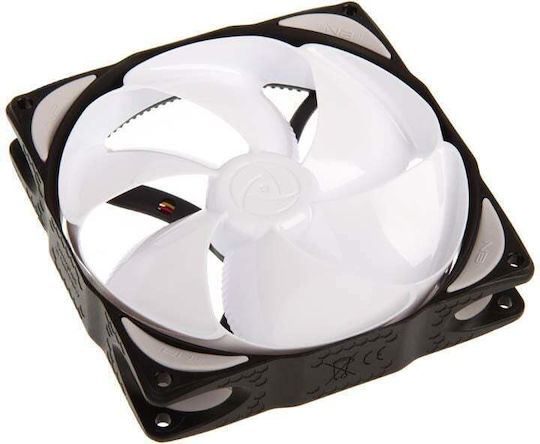

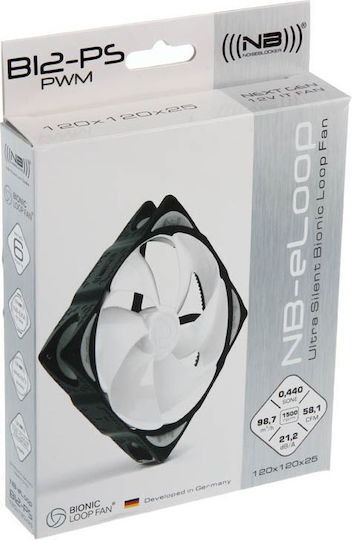

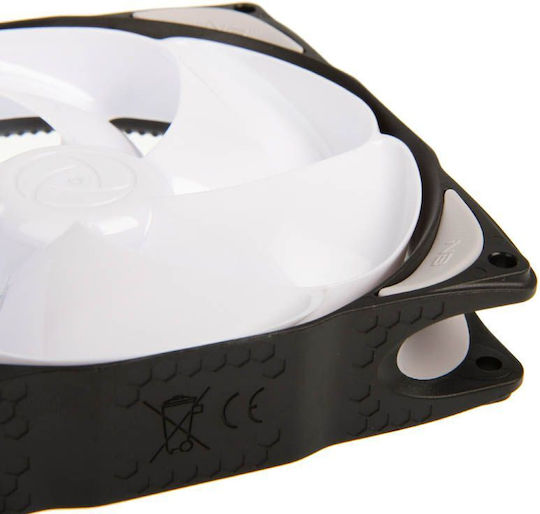

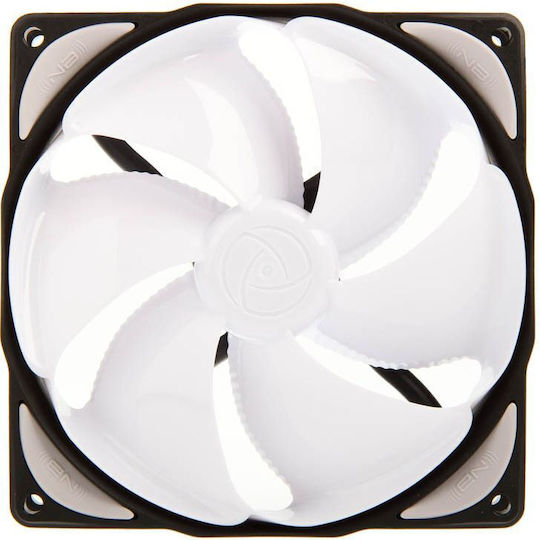

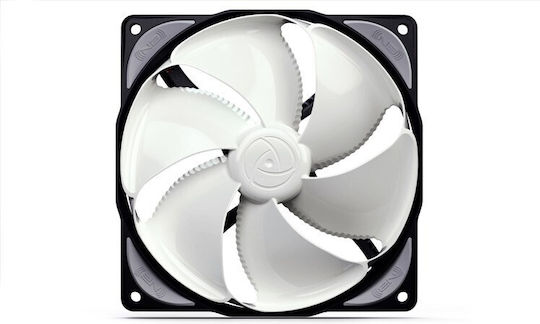

ELoop B12-PS Case Fans 120mm 1500rpm Without LEDs Connection 4-Pin PWM White
Case Fans

ELoop B12-PS Case Fans 120mm 1500rpm Without LEDs Connection 4-Pin PWM White

The Noiseblocker NB-eLoop B12-PS fan features a ring-shaped rotor designed to reduce airflow turbulence and noise. PWM technology adjusts the rotational speed from 400 to 1,500 rpm, while the maximum...

The Noiseblocker NB-eLoop B12-PS fan features a ring-shaped rotor designed to reduce airflow turbulence and noise. PWM technology adjusts the rotational speed from 400 to 1,500 rpm, while the maximum airflow reaches 98.7 m³/h.

  • Dimensions: 120 120 25 mm
  • Color: White
  • Lighting: No LED
  • Rotational speed: 400–1,500 rpm
  • Connection: 4-pin PWM
  • Airflow: Up to 98.7...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

The Noiseblocker NB-eLoop B12-PS fan features a ring-shaped rotor designed to reduce airflow turbulence and noise. PWM technology adjusts the rotational speed from 400 to 1,500 rpm, while the maximum airflow reaches 98.7 m³/h.

  • Dimensions: 120 × 120 × 25 mm
  • Color: White
  • Lighting: No LED
  • Rotational speed: 400–1,500 rpm
  • Connection: 4-pin PWM
  • Airflow: Up to 98.7 m³/h
  • Static pressure: Up to approximately 1.475 mmH₂O
  • Noise level: Up to 21.2 dB(A)
  • Voltage: 12 V
  • Power consumption: 0.95 W
  • Operating temperature range: -10 to 60 °C
  • Mean service life: Approximately 140,000 hours
  • Quantity: 1

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Main Specifications

Dimension
120 mm

Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter its operation compared to a smaller one. The most common size is 120mm, with some computer cases supporting larger sizes such as 140mm.
Colour
White
Packaging
1 pcs

Technical Specifications

Fan Speed (Max)
1500 rpm

Fan Speed (Max)

The maximum rotations at which the fan turns. To reduce the rotations, it should be connected to a speed controller, either through a port on the motherboard that supports this function. Usually, the higher the rotations, the greater the flow but also the noise. As long as the needs for noise and air flow are covered, the rotations do not need to be taken into account.
Connection
4-Pin PWM

Connection

4-Pin PWM
Plug for connecting the fan to the motherboard with the ability to control the fan speed. Usually used for cooling the processor. 2. It can also be connected to a 3-Pin socket but will always operate at maximum speed.
LED Color
Without LEDs
Reverse Blade
No

Reverse Blade

Reverse blade fans reverse the airflow, allowing for intake without the interference of the frame, which reduces aerodynamic turbulence and noise. Additionally, apart from enhancing aesthetics and lighting, they make it easier to clean the blades and offer better cable management, as the wiring remains hidden behind the frame.
Air Pressure
1.47 mmH₂O: millimeters of water

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Noiseblocker NB-eLoop B12-PS fan features a ring-shaped rotor designed to reduce airflow turbulence and noise. PWM technology adjusts the rotational speed from 400 to 1,500 rpm, while the maximum airflow reaches 98.7 m³/h.

  • Dimensions: 120 × 120 × 25 mm
  • Color: White
  • Lighting: No LED
  • Rotational speed: 400–1,500 rpm
  • Connection: 4-pin PWM
  • Airflow: Up to 98.7 m³/h
  • Static pressure: Up to approximately 1.475 mmH₂O
  • Noise level: Up to 21.2 dB(A)
  • Voltage: 12 V
  • Power consumption: 0.95 W
  • Operating temperature range: -10 to 60 °C
  • Mean service life: Approximately 140,000 hours
  • Quantity: 1

Manufacturer

Manufacturer Details

Warnings & Safety Information

Main Specifications

Dimension
120 mm

Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter its operation compared to a smaller one. The most common size is 120mm, with some computer cases supporting larger sizes such as 140mm.
Colour
White
Packaging
1 pcs

Technical Specifications

Fan Speed (Max)
1500 rpm

Fan Speed (Max)

The maximum rotations at which the fan turns. To reduce the rotations, it should be connected to a speed controller, either through a port on the motherboard that supports this function. Usually, the higher the rotations, the greater the flow but also the noise. As long as the needs for noise and air flow are covered, the rotations do not need to be taken into account.
Connection
4-Pin PWM

Connection

4-Pin PWM
Plug for connecting the fan to the motherboard with the ability to control the fan speed. Usually used for cooling the processor. 2. It can also be connected to a 3-Pin socket but will always operate at maximum speed.
LED Color
Without LEDs
Reverse Blade
No

Reverse Blade

Reverse blade fans reverse the airflow, allowing for intake without the interference of the frame, which reduces aerodynamic turbulence and noise. Additionally, apart from enhancing aesthetics and lighting, they make it easier to clean the blades and offer better cable management, as the wiring remains hidden behind the frame.
Air Pressure
1.47 mmH₂O: millimeters of water

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
