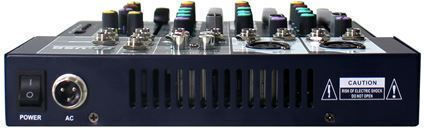

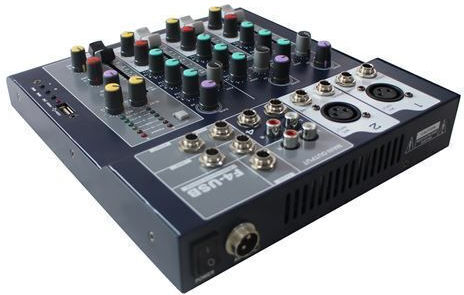

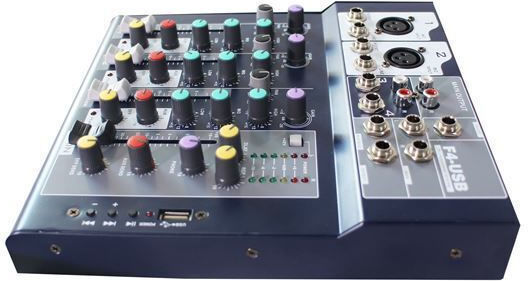

Lucky Tone F4-USB Active Analog Console 4 Channels with Phantom Power & 40 XLR Inputs
Audio Mixers & Consoles

Lucky Tone F4-USB Active Analog Console 4 Channels with Phantom Power & 40 XLR Inputs

4-channel audio mixing console

  • Maximum input level: Microphone + 24dBu, Line + 24dB
  • Maximum output level: +26 dBu
  • Main level meter: LED 5 areas
  • Frequency response: 20Hz -20Khz 0.5db
  • Common mode...

4-channel audio mixing console

  • Maximum input level: Microphone + 24dBu, Line + 24dB
  • Maximum output level: +26 dBu
  • Main level meter: LED 5 areas
  • Frequency response: 20Hz -20Khz 0.5db
  • Common mode rejection ratio (MIC 1Khz): >75dB
  • Total harmonic distortion (THD + N):
  • Crosstalk (1K Hz): >85dB
  • Noise (22Hz – 22kHz): Equivalent input noise -116dBu, Remaining...
See full description See full description
Review the product
Product report

Description

Description

4-channel audio mixing console

  • Maximum input level: Microphone + 24dBu, Line + 24dB
  • Maximum output level: +26 dBu
  • Main level meter: LED 5 areas
  • Frequency response: 20Hz -20Khz ± 0.5db
  • Common mode rejection ratio (MIC 1Khz): >75dB
  • Total harmonic distortion (THD + N):
  • Crosstalk (1K Hz): >85dB
  • Noise (22Hz – 22kHz): Equivalent input noise -116dBu, Remaining output noise
  • Mono / Stereo Channel EQ: High Frequency, Broth, ± 15dB, 12K Hz, High frequency, peak and valley type, ± 15dB, 2.5K Hz, Low frequency, broom type, ± 15dB, 80Hz
  • Mono XLR: balanced, 2-pin hot end, 2K ohm, sensitivity -60 to +14 dBu, TRS balanced, tip hot 10Kohm, sensitivity -40 to +14 dBu, XLR Phantom Power + 48V
  • Stereo TRS: non-balanced, tip hot 10Kohm, sensitivity -40 to +14 dBu
  • Outputs L/R, TRS: unbalanced, tip hot end
  • FX / AUX output TRS: unbalanced, tip hot side
  • Headphones TRS: tip L, ring R, recommended 30 to 600 ohm headphones
  • Maximum power input power: 15W
  • Dimensions: 210 x 230 x 37 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Console
Type
Analog
Active
Yes
Channels
4
Phantom Power
Yes
Effects
Yes
Height
-
Length
-

Connectivity

USB (for PC)
No
XLR Inputs
40
Bluetooth
No
Headphones
Yes
Ethernet
No

Ethernet

Remote control port of the audio console via network cable.
RCA
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

4-channel audio mixing console

  • Maximum input level: Microphone + 24dBu, Line + 24dB
  • Maximum output level: +26 dBu
  • Main level meter: LED 5 areas
  • Frequency response: 20Hz -20Khz ± 0.5db
  • Common mode rejection ratio (MIC 1Khz): >75dB
  • Total harmonic distortion (THD + N):
  • Crosstalk (1K Hz): >85dB
  • Noise (22Hz – 22kHz): Equivalent input noise -116dBu, Remaining output noise
  • Mono / Stereo Channel EQ: High Frequency, Broth, ± 15dB, 12K Hz, High frequency, peak and valley type, ± 15dB, 2.5K Hz, Low frequency, broom type, ± 15dB, 80Hz
  • Mono XLR: balanced, 2-pin hot end, 2K ohm, sensitivity -60 to +14 dBu, TRS balanced, tip hot 10Kohm, sensitivity -40 to +14 dBu, XLR Phantom Power + 48V
  • Stereo TRS: non-balanced, tip hot 10Kohm, sensitivity -40 to +14 dBu
  • Outputs L/R, TRS: unbalanced, tip hot end
  • FX / AUX output TRS: unbalanced, tip hot side
  • Headphones TRS: tip L, ring R, recommended 30 to 600 ohm headphones
  • Maximum power input power: 15W
  • Dimensions: 210 x 230 x 37 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
Console
Type
Analog
Active
Yes
Channels
4
Phantom Power
Yes
Effects
Yes
Height
-
Length
-

Connectivity

USB (for PC)
No
XLR Inputs
40
Bluetooth
No
Headphones
Yes
Ethernet
No

Ethernet

Remote control port of the audio console via network cable.
RCA
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
