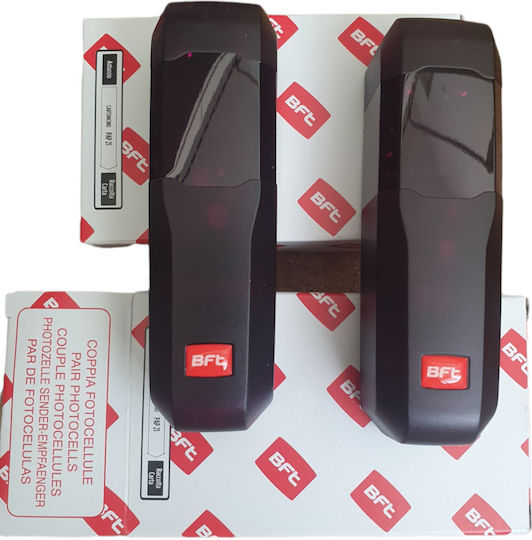

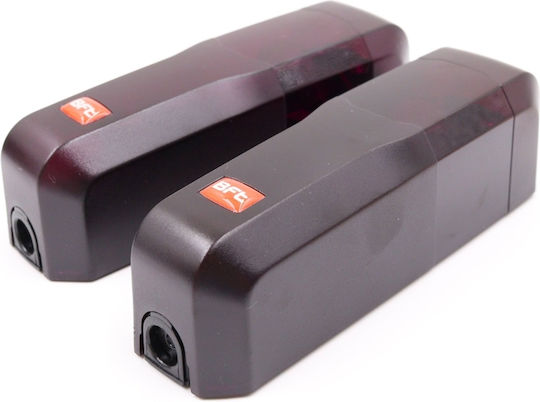

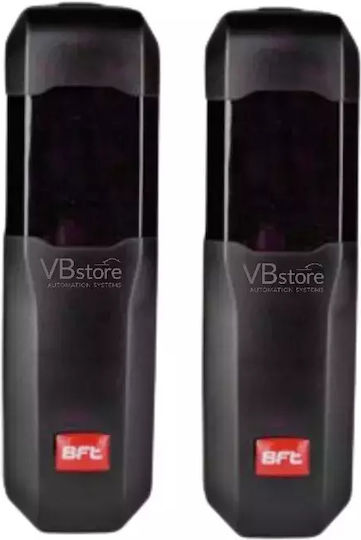

Pair of adjustable photocells, designed to offer a high level of installation flexibility thanks to their compact size, the ability to adjust the head 90° horizontally, left and right (180° in total), and the wide input power range of 12-33 VAC and 15-35 VDC. Nominal range of 20 meters.

Design and small dimensions:

The COMPACTA is designed to optimize space by reducing its dimensions as much as possible to fully integrate into various types of installations. The design language of BFT is evident in all aspects, from the characteristic shapes and geometry that combine elegance, functionality, and practicality.

Flexibility:

The COMPACTA can use a wide input power range, 12-33 VAC 50/60 Hz and 15-35 VDC, and therefore can be used in a vast number of installations. Additionally, it can be wired to all BFT certified control panels.

Maximum installation simplicity:

The ability to adjust the infrared head up to 90° to the left and right (180° in total) means that these photocells can be installed on walls or posts that are not aligned, thus saving time and achieving a neat and seamless installation. In the vertical plane, the optical elements are fixed, although their geometry allows us to correct some minor alignment errors up to +/- 5°. Finally, once the correct angle of the optical elements is found, the cover locks onto the base with a simple characteristic "click" sound.
