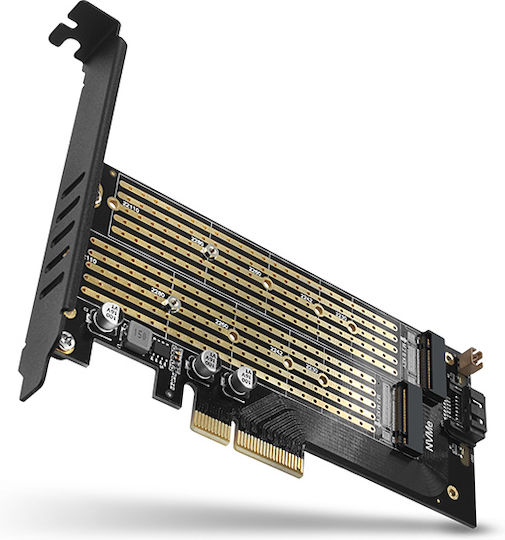

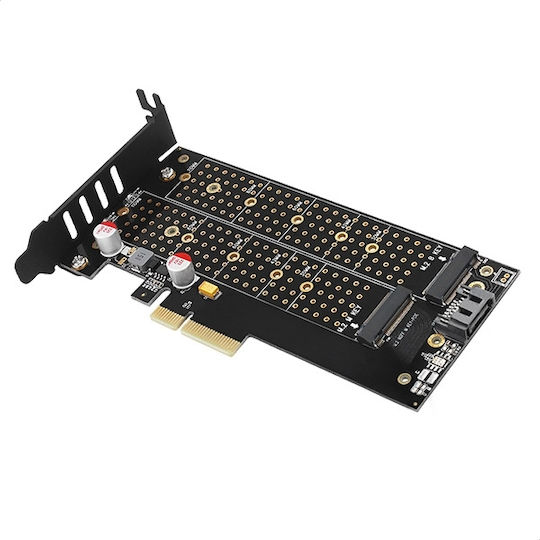

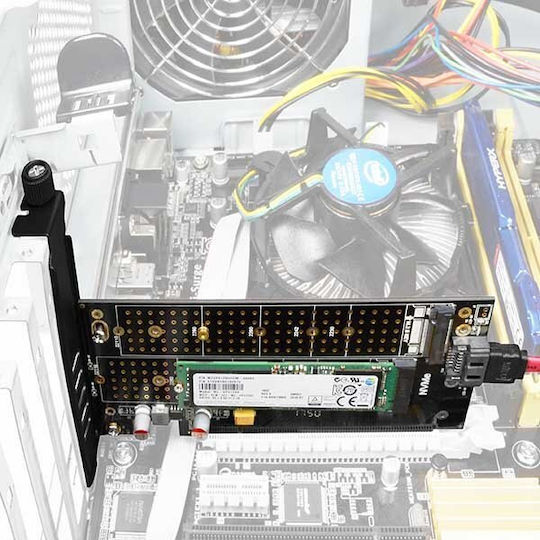

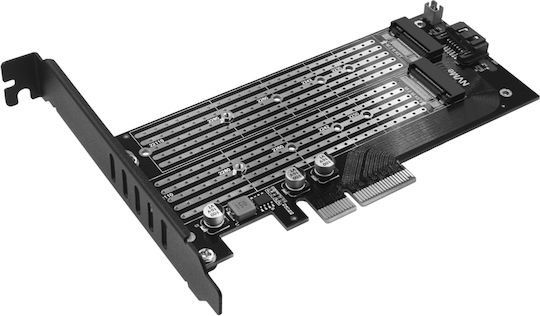

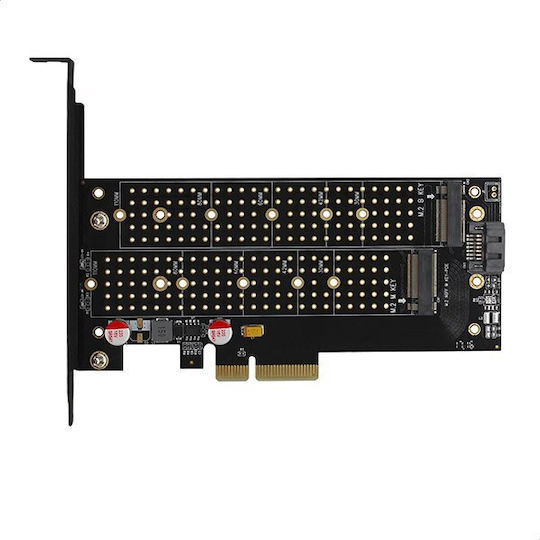

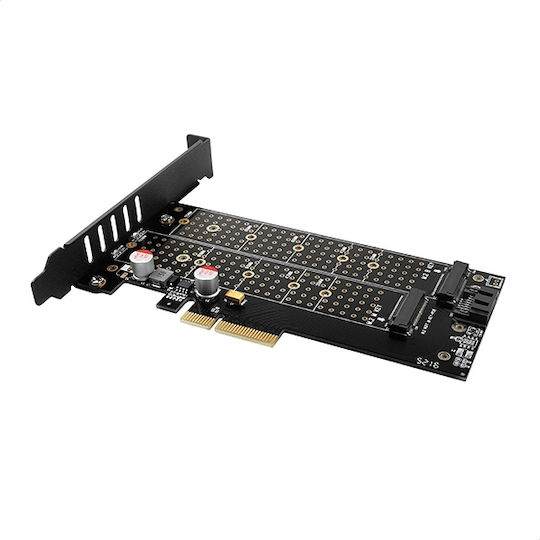

The Axagon PCEM2-D adapter connects up to two M.2 SSDs to a desktop computer via PCI Express, even if the motherboard does not have an M.2 slot. It supports simultaneous operation of SATA (AHCI) and NVMe (PCI Express) drives, with a dedicated B-key slot for SATA and an M-key slot for NVMe. The card features copper heatsinks for heat dissipation and dual indicator LEDs for power and data transfer.

It is powered directly by the PCI Express bus, with no need for an external power supply. The package includes mounting brackets for standard and low-profile cases, thermal pads, a 50 cm SATA data cable, mounting hardware and a screwdriver.

• Type: Internal M.2 to SATA and NVMe adapter
• Input connection: PCI Express 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a
• Compatible PCIe slots: x4, x8 and x16
• M.2 slots: NGFF 75-pin M-key for NVMe and NGFF 75-pin B-key for SATA (AHCI)
• Drive sizes: 2230, 2242, 2260, 2280 and 22110 mm
• Drive capacity: No limit
• Drive operation: Simultaneous
• Drive support: Single- and double-sided
• Indicators: Dual LEDs for power and data transfer
• Cooling: Copper heatsinks
• Boot support: From an SSD card
• Plug and Play: Full support
• Power supply: Via the PCI Express bus
• Dimensions: 142 x 64 x 12 mm
• Weight: 46 g
• Compatible operating systems: Windows 7 / 8 / 8.1 / 10 / 11, Windows Server 2008 R2 / 2012 / 2016, Linux with kernel 2.6.31 or later
• Package contents: PCI Express adapter with standard bracket, low-profile bracket, 2 thermal pads, 50 cm SATA data cable, mounting hardware and screwdriver
