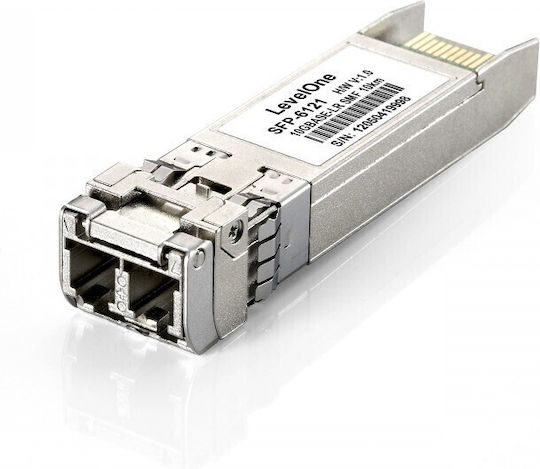

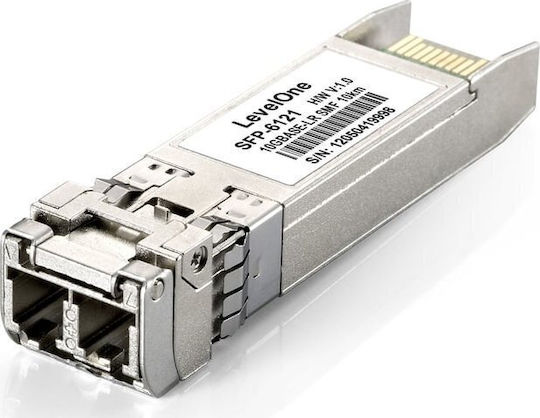

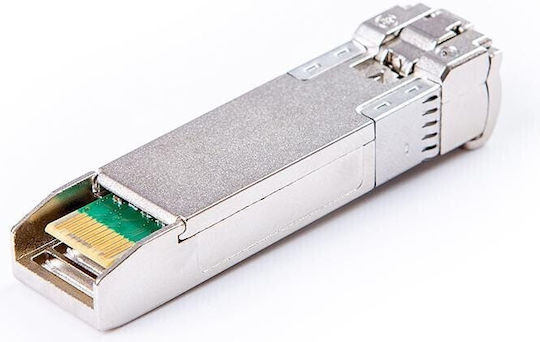

Levelone Sfp Transceiver 10G Single-Mode Duplex LC 10km

The LevelOne SFP-6121 optical transceiver is designed for 10 Gigabit Ethernet networks and transmits data over single-mode optical fiber. Its duplex LC connection and maximum range of 10 km support...

The LevelOne SFP-6121 optical transceiver is designed for 10 Gigabit Ethernet networks and transmits data over single-mode optical fiber. Its duplex LC connection and maximum range of 10 km support long-distance connections, while hot-swappable capability allows replacement without interrupting operation. It supports DOM/DDMI for status monitoring and is...

See full description See full description
233 01 €
Delivery Thu, 26 Nov - Wed, 02 Dec
14,00 €   shipping cost
Sent from Greece
From Getters 4.5 (118)

Learn more about invoicing

Description

Description

The LevelOne SFP-6121 optical transceiver is designed for 10 Gigabit Ethernet networks and transmits data over single-mode optical fiber. Its duplex LC connection and maximum range of 10 km support long-distance connections, while hot-swappable capability allows replacement without interrupting operation. It supports DOM/DDMI for status monitoring and is compatible with MSA-compliant devices.

  • Quantity: 1
  • Transceiver type: SFP+
  • Data rate: up to 10 Gbps
  • Fiber type: Single-mode fiber (SMF)
  • Connection: Duplex LC
  • Wavelength: 1310 nm
  • Maximum range: 10 km
  • Compatibility: MSA
  • Monitoring: DOM/DDMI
  • Replacement: Hot-swappable
  • Operating temperature: 0 °C to 70 °C
  • Supply voltage: 3.3 V
  • Maximum voltage: 3.6 V
  • Maximum current: 0.33 A
  • Dimensions: 56.4 × 13.4 × 10.97 mm
  • Weight: 0.015 kg
  • Certifications: CE, FCC, RoHS

Manufacturer

See full description

Specifications

Specifications

Form Factor
SFP
Data Transfer Speed
10 Gbps
Transmission Media Type
Single-Mode Fiber (SMF)
Pieces
1 pcs

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The LevelOne SFP-6121 optical transceiver is designed for 10 Gigabit Ethernet networks and transmits data over single-mode optical fiber. Its duplex LC connection and maximum range of 10 km support long-distance connections, while hot-swappable capability allows replacement without interrupting operation. It supports DOM/DDMI for status monitoring and is compatible with MSA-compliant devices.

  • Quantity: 1
  • Transceiver type: SFP+
  • Data rate: up to 10 Gbps
  • Fiber type: Single-mode fiber (SMF)
  • Connection: Duplex LC
  • Wavelength: 1310 nm
  • Maximum range: 10 km
  • Compatibility: MSA
  • Monitoring: DOM/DDMI
  • Replacement: Hot-swappable
  • Operating temperature: 0 °C to 70 °C
  • Supply voltage: 3.3 V
  • Maximum voltage: 3.6 V
  • Maximum current: 0.33 A
  • Dimensions: 56.4 × 13.4 × 10.97 mm
  • Weight: 0.015 kg
  • Certifications: CE, FCC, RoHS

Manufacturer

Form Factor
SFP
Data Transfer Speed
10 Gbps
Transmission Media Type
Single-Mode Fiber (SMF)
Pieces
1 pcs

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
