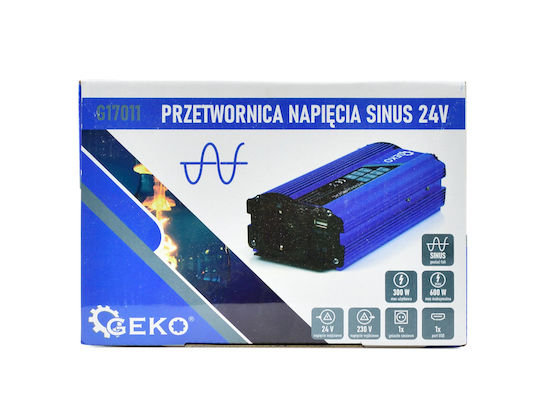

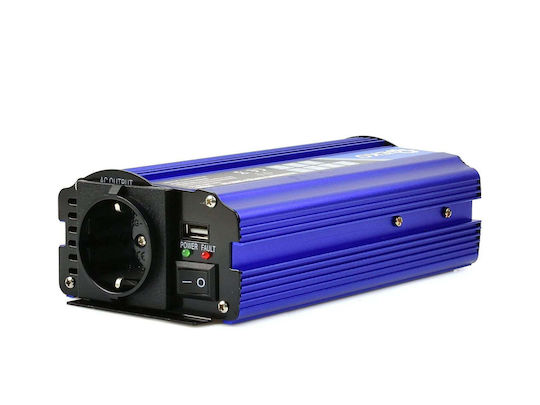

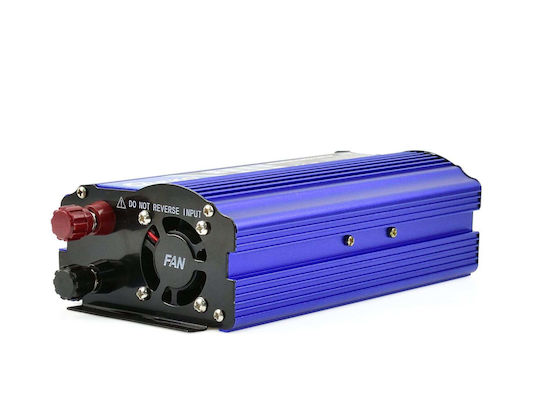

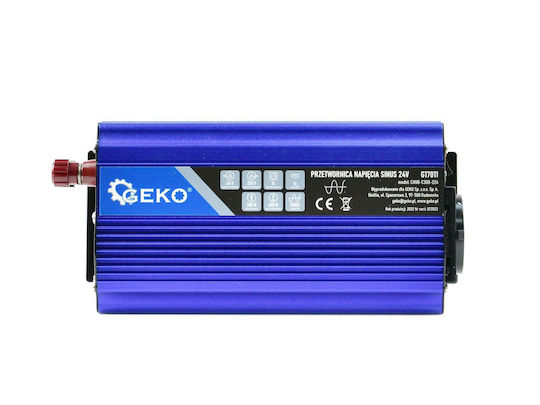

Voltage Converter 24V/230V 300/600W - pure sine wave output.

Voltage converters are designed to convert direct current from 24V batteries to alternating current with a voltage of 230V. The device is equipped with a USB port for powering and charging mobile devices. Unlike traditional AC/DC converters, sine wave converters produce alternating current with a sine wave waveform at the output (like the electrical grid).

This type of converter is ideal for powering devices such as tools, pumps, electronics, and household appliances.

• Pure sine wave voltage converter.
• Ideal for powering devices such as refrigerators, TVs, computers/laptops.
• Suitable for trucks and motorhomes with a 24V electrical system.
• Equipped with a USB port for powering and charging mobile devices.

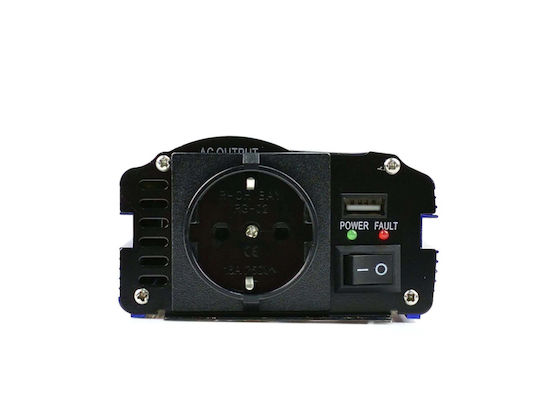

• Features type F socket.

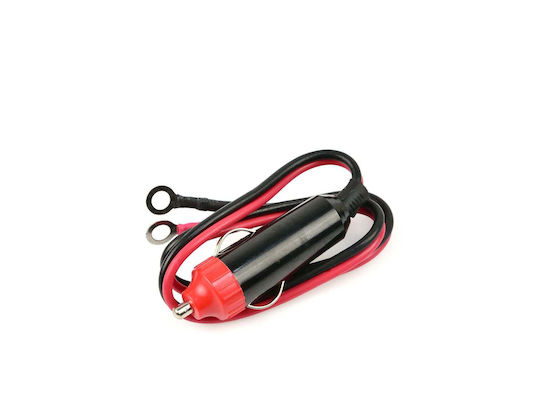

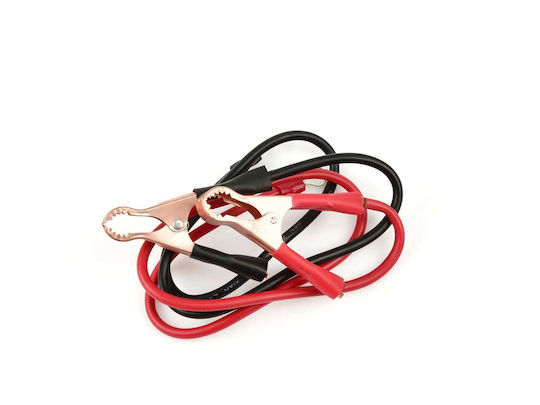

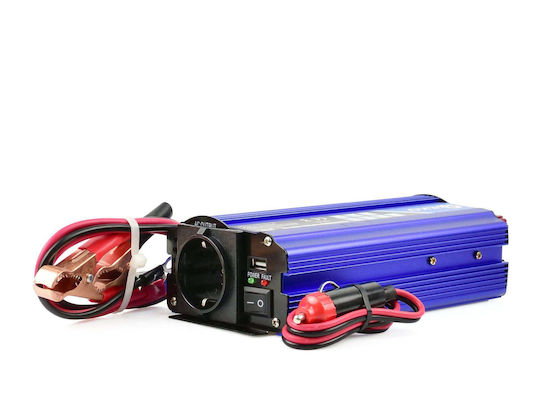

• The package includes two cables for connecting the converter: car plug cable and crocodile clip cable.

Technical specifications:

• Input data (DC):
  • Maximum input voltage: 30V
  • Nominal input voltage: 24V
  • Minimum supply voltage: 21V
  • Input voltage range: 21 - 30V
• Output data (AC):
  • Maximum output power: 600W
  • Continuous output power: 300W
  • Output voltage range: 220-250V
  • Nominal voltage: 220, 230, 240V
  • Voltage waveform: pure sine wave
  • Voltage frequency: 50, 60 Hz
  • Efficiency: 93%
  • USB port: 5V/500mA
• General information:
  • Dimensions (L x W x H): 224 x 100 x 60 mm
  • Weight: 0.88 kg
  • Transformer: high frequency

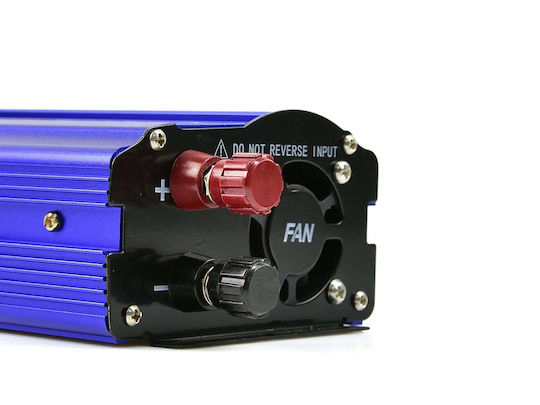

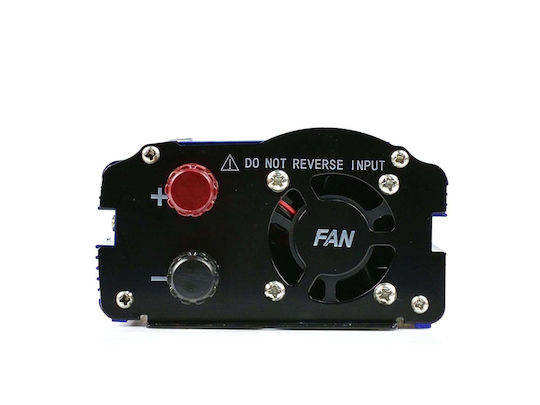

  • Cooling: fan
  • Protection level (IP): IP20
  • Operating temperature: 0-40°C
• Safety features:
  • Fuse: 1 x 30A
  • Protections: reverse polarity protection, low voltage protection, overvoltage protection, overload protection, short-circuit protection, overheating protection.
