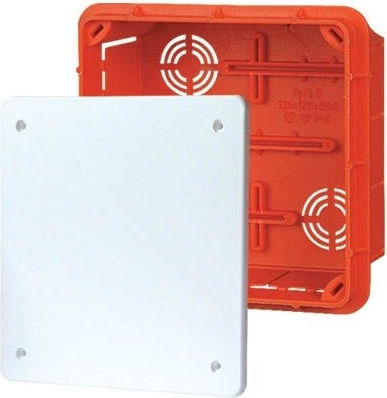

PP/T5 flush box 130x130x70mm orange
The PP/T flush box is made of plastic with high mechanical and electrical resistance. It is used in flush electrical installations. Inside the box, it is possible to install junction plates up to 10mm². The box has weaknesses in the side walls and at the bottom of the body and is equipped with a special collar around the body to facilitate installation in drywall. Additionally, it has a paper cover that protects the interior from dirt during façade work and renovations.
- Color: orange

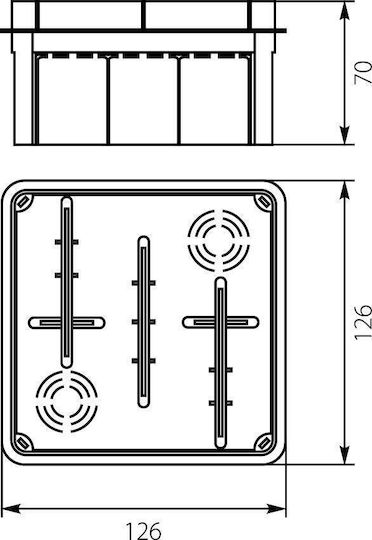

- Dimensions: 130mm x 130mm x 70mm
- Protection level: IP40
- Shape: square
- Construction type: junction box
- Number of entries: 14
- Number of fittings: 1
- Model: single
- Cover mounting: screwed
- Type of ring in the housing: compression
- Material: plastic
- Installation method: flush mounting
- Placement
- Outdoor
- Branching
- No
- Plasterboard
- No
- Protection Certification
- IP40
- Colour
- Orange
- Length
- 130 mm
- Width
- 130 mm
- Height
- 70 mm
