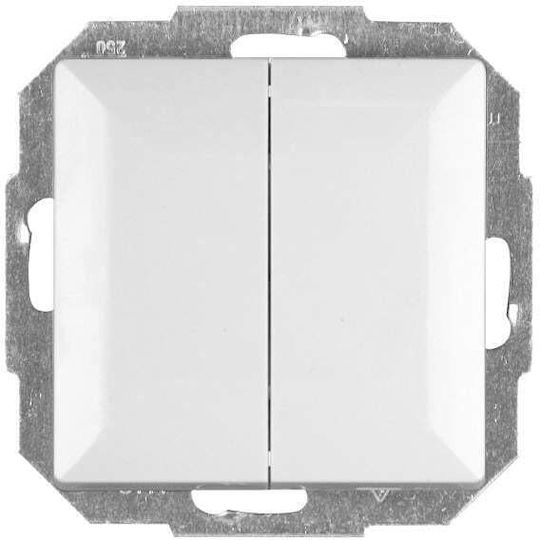

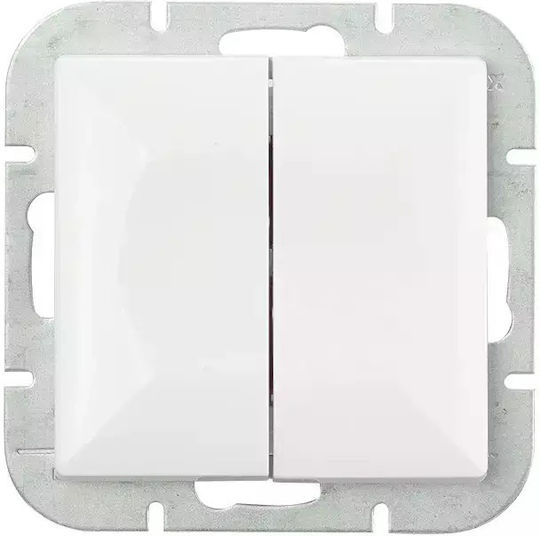

The Abex double flush-mounted wall switch is designed to control lighting and has a glossy white finish. Its contacts are made of silver, and the self-clamping terminals allow wires to be connected and removed quickly.
It is mounted in the box using a metal plate and self-returning claws, while the frames are secured to the body with a spring clip. The terminals accept wires with a cross-section of 0.75–2.5 mm².
- Type: Front unit
- Style: Standard
- Installation: Flush-mounted
- Number of switches: 2
- Function: Lighting
- Colour: White
- Material: Plastic, thermoplastic
- Surface finish: Glossy
- Rated voltage: 250 V
- Current rating: 10 A
- Connection type: Plug-in self-clamping terminals
- Wire cross-section: 0.75–2.5 mm²
- Mounting: With claws
- Label/marking space: Yes
- Illumination: Non-illuminated
- Degree of protection: IP20
Specifications
- Placement
- Recessed
- Switch Type
- Front
- Switch Type
- Basic
- Number of Switches
- Two-Way
- Mode
- Lighting
- Colour
- White
- Current Intensity
- 10 A
Functions
- Aller Retour
- No
- Medium
- No
- Illuminated
- No
- Waterproof
- No
- Protection Certification
- IP20
- Battery-powered
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
