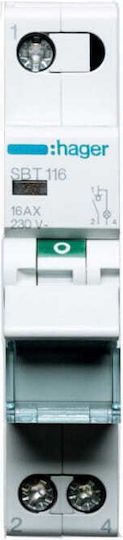

Hager 1-Pole Panel Push Switch 16A
Electrical Panel Push Buttons Switches

Hager 1-Pole Panel Push Switch 16A

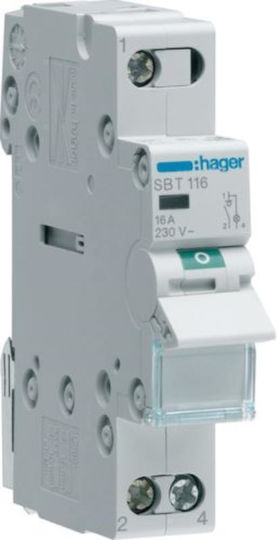

Modular switch disconnector with indicator light 16A 1P (SBT116)

  • Nominal current: 16A
  • Number of poles: 1 P
  • Number of modules: 1
  • Rated operational voltage Ue (AC): 230V
  • Rated insulation voltage Ui:...

Modular switch disconnector with indicator light 16A 1P (SBT116)

  • Nominal current: 16A
  • Number of poles: 1 P
  • Number of modules: 1
  • Rated operational voltage Ue (AC): 230V
  • Rated insulation voltage Ui: 440V
  • Rated impulse withstand voltage Uimp: 6000V
  • Frequency: 50/60 Hz
  • Total power loss for nominal current: 0.4 W
  • Mechanical endurance (number of cycles): 40,000
  • ...
See full description See full description
Review the product
Product report

Description

Description

Modular switch disconnector with indicator light 16A 1P (SBT116)

  • Nominal current: 16A
  • Number of poles: 1 P
  • Number of modules: 1
  • Rated operational voltage Ue (AC): 230V
  • Rated insulation voltage Ui: 440V
  • Rated impulse withstand voltage Uimp: 6000V
  • Frequency: 50/60 Hz
  • Total power loss for nominal current: 0.4 W
  • Mechanical endurance (number of cycles): 40,000
  • Operating temperature: -20 to 50 °C
  • Storage temperature: -40 to 80 °C
  • Height of installed product: 83 mm
  • Width of installed product: 17.5 mm
  • Depth of installed product: 68 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Poles
1
Rated Voltage
16 A

Features & Functions

WiFi
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Modular switch disconnector with indicator light 16A 1P (SBT116)

  • Nominal current: 16A
  • Number of poles: 1 P
  • Number of modules: 1
  • Rated operational voltage Ue (AC): 230V
  • Rated insulation voltage Ui: 440V
  • Rated impulse withstand voltage Uimp: 6000V
  • Frequency: 50/60 Hz
  • Total power loss for nominal current: 0.4 W
  • Mechanical endurance (number of cycles): 40,000
  • Operating temperature: -20 to 50 °C
  • Storage temperature: -40 to 80 °C
  • Height of installed product: 83 mm
  • Width of installed product: 17.5 mm
  • Depth of installed product: 68 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
1
Rated Voltage
16 A

Features & Functions

WiFi
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
