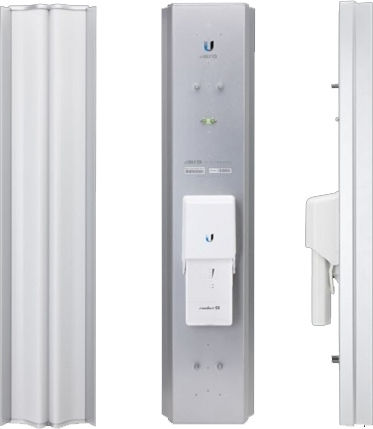

The Ubiquiti airMAX Sector 5AC21-60 antenna is an outdoor sector antenna for 5 GHz frequencies and the 802.11ac network standard. It features a 2×2 dual-linear polarization design, with reduced side and rear lobes to limit interference in co-located installations. It is designed for outdoor use and airMAX Point-to-MultiPoint networks.

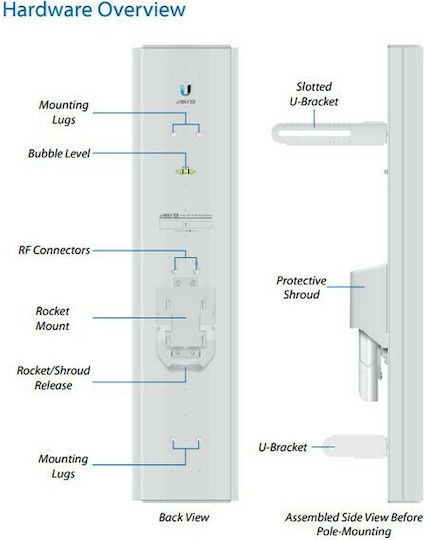

The integrated Rocket mount allows tool-free installation of the Rocket BaseStation. The antenna is compatible with the RocketM5, while the Rocket5ac is required for optimal performance.

• Antenna type: Sector
• Mounting: Outdoor
• Frequency: 5 GHz
• Frequency range: 5.10–5.85 GHz
• Gain: 21 dBi
• Connection type: SMA
• Network standard: 802.11ac
• Wi-Fi generation: Wi-Fi 5
• MIMO: 1
• Polarization: Dual linear
• Horizontal beamwidth: 45° (6 dBi)
• Vertical beamwidth: 45° (6 dBi)
• Electrical beamwidth: 4°
• Electrical downtilt: 2°
• Maximum voltage standing wave ratio: 1.5:1
• Cross-polarization isolation: 30 dB minimum
• Wind resistance: 200 km/h
• Wind loading: 347 N at 200 km/h
• Dimensions: 750 × 215 × 94 mm
• Weight: 6 kg
• ETSI standard: EN 302 326 DN1

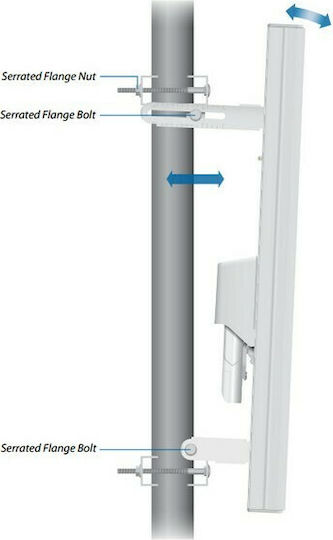

• Mounting: Pole-mounted, with Rocket mount
• Color: White
