Kanlux 3-Poles Changeover Panel Push Button Changeover Switch 400V 32A
Electrical Panel Push Buttons Switches

Kanlux 3-Poles Changeover Panel Push Button Changeover Switch 400V 32A

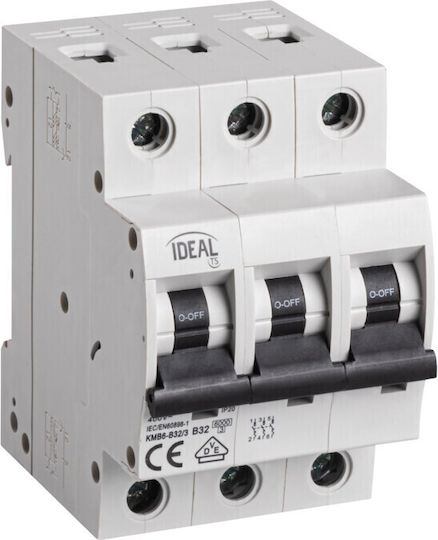

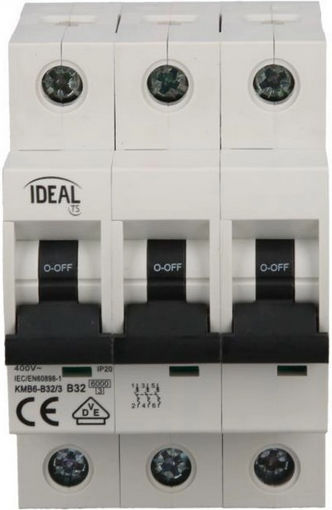

The Kanlux three-pole DIN-rail circuit breaker is used to protect conductors from overloads and short circuits in electrical installations and devices. It is installed on a 35 mm DIN rail and complies...

The Kanlux three-pole DIN-rail circuit breaker is used to protect conductors from overloads and short circuits in electrical installations and devices. It is installed on a 35 mm DIN rail and complies with the EN60898-1 and IEC60898-1 standards.

  • Type: Circuit breaker
  • Number of poles: 3
  • Rated voltage: 230/400 V~
  • Rated current: 32 A
  • Rated frequency: 50/60 Hz
    • ...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

The Kanlux three-pole DIN-rail circuit breaker is used to protect conductors from overloads and short circuits in electrical installations and devices. It is installed on a 35 mm DIN rail and complies with the EN60898-1 and IEC60898-1 standards.

  • Type: Circuit breaker
  • Number of poles: 3
  • Rated voltage: 230/400 V~
  • Rated current: 32 A
  • Rated frequency: 50/60 Hz
  • Trip characteristic: B
  • Rated short-circuit current: 6000 A
  • Mechanical endurance: 4000
  • Installation: On a 35 mm DIN rail
  • Conductor cross-section: 1–25 mm²
  • Standards: EN60898-1, IEC60898-1

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Panel Switches Type
Changeover
Number of Poles
3
Nominal Voltage
400 V
Rated Voltage
32 A

Features & Functions

WiFi
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
