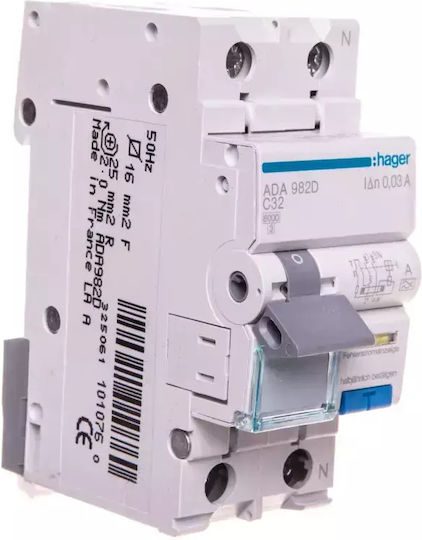

Residual current circuit breaker 2P 32A C 0.03A type A (ADA982D)

• Nominal current: 32 A
• Circuit breaker type: C
• Nominal short-circuit breaking capacity Icn: 6 kA
• Residual current circuit breaker type: A
• Nominal residual current dI: 30 mA
• Number of poles: 2 P
• Number of modules: 2
• Nominal insulation voltage Ui: 500 V
• Nominal impulse withstand voltage Uimp: 4000 V
• Nominal frequency: 50 Hz
• Connection type: with screw
• Tightening torque: 2.1 Nm
• Total power loss for nominal current: 8.3 W
• Electrical endurance (number of cycles): 2000
• Mechanical endurance (number of cycles): 1000
• Number of wires: 1 / 16 mm²
• Number of wires - wire: 1 / 25 mm²
• Operating temperature: -25 to 40 °C
• Storage temperature: -25 to 70 °C
• Installed product height: 83 mm
• Installed product width: 35 mm
• Installed product depth: 68 mm
