The ETIMAT10 1P B 10A 10kA AC circuit breaker is a fundamental and widely used safety automation device designed to limit the effects of short circuits and overloads in electrical installations. The current flow that exceeds the rated value of the breaker causes it to trip and interrupt the supplied circuit. This function aims to protect devices, installations from wear, individuals from electric shock, and ultimately from the occurrence of fire.

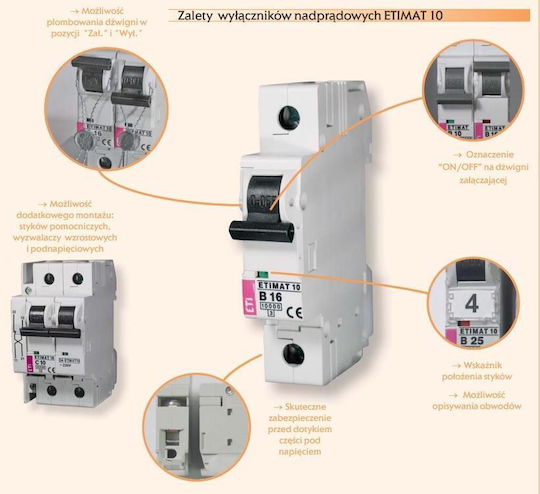

Due to its features, it is primarily used in residential electrical installations to protect lighting circuits, sockets, and control systems. The design of the breakers allows for the installation of additional equipment, such as auxiliary contacts, which facilitate remote indication of the device's operation. The breaker can also be equipped with overvoltage indicators, which remotely open the breaker's contacts upon the occurrence of voltage, or with undervoltage indicators, which trip the breaker in case of a drop in voltage relative to the rated value.

Overcurrent breakers are mounted on TH-35 mounting rails. The breaking capacity of this breaker is defined at a level of 10kA.

• Rated voltage: 230V AC
• Frequency: 50Hz
• Rated current: 10A
• Characteristics: B
• Protection degree: IP20
• Number of poles: 1
• Installation: TH-35 rail
