The ETIMAT10 1P C 6A 10kA AC overload circuit breaker is a fundamental and widely used safety system that limits the consequences of short circuits and overloads in electrical installations. The current flow exceeding the breaker's rated value triggers the release and interrupts the powered circuit. This action aims to protect devices and installations from damage, safeguard individuals from electric shock, and ultimately prevent fire.

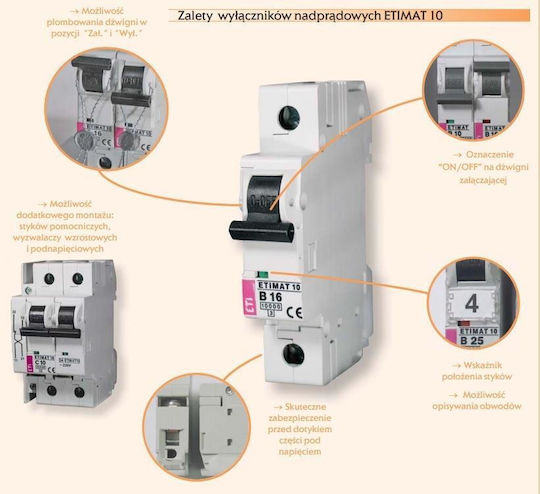

Due to its parameters, it is mainly used in residential electrical installations to protect lighting circuits, sockets, and control systems. The construction of the breakers allows for the installation of additional equipment, such as auxiliary contacts, which enable remote signaling of the device's operation. The breaker can also be equipped with overvoltage release devices, which remotely open the breaker's contacts when voltage appears, or with undervoltage release devices, which release the breaker in case of a voltage drop relative to the rated value.

Overload circuit breakers are mounted on a TH-35 rail. The breaker's breaking capacity is rated at 10kA.

• Rated voltage: 230V AC
• Frequency: 50Hz
• Rated current: 6A
• Characteristics: C
• Protection degree: IP20
• Number of poles: 1
• Mounting: TH-35 rail
