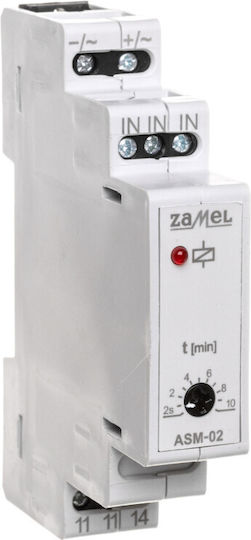

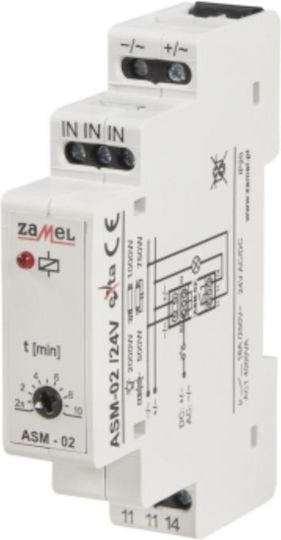

The Automatic Staircase ASM-02/24V is designed for managing lighting in corridors or staircases. When the system is activated, the automatic switch turns on the light for the time period set by the user, and then it turns off automatically. The operating time can be smoothly adjusted from 2 seconds to 10 minutes via the regulator located on the front panel of the automatic switch.

It does not have an anti-blocking function and can be used as a timer for delayed disconnection.

• Installation method: DIN rail
• Width: 1 module
• Connection: 4 wires
• Maximum connection capacity for lamps: 2000 W
• Maximum connection capacity for fluorescent lights: 500 VA
• Maximum connection capacity for fluorescent lights (DUO compensation): 750 VA
• Maximum connection capacity for fluorescent lights (with parallel compensation): 1000 VA
• For power supply: -/AC , +/AC
• Nominal supply voltage: 24 V
• Operating temperature: -20/45 °C
• Nominal frequency: 50/60 Hz
• Time setting range t: 2 s ÷ 10 min (rotary regulator)
• Relay contact parameters: 1NO - 16 A / 250 V AC1 4000 VA
• Case protection rating: IP20
• Dimensions: Width 90 mm, Height 17.5 mm, Depth 66 mm
• Weight: 72 g
• Anti-blocking function: Yes
