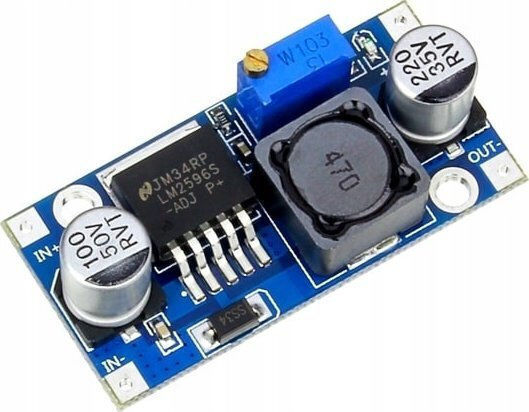

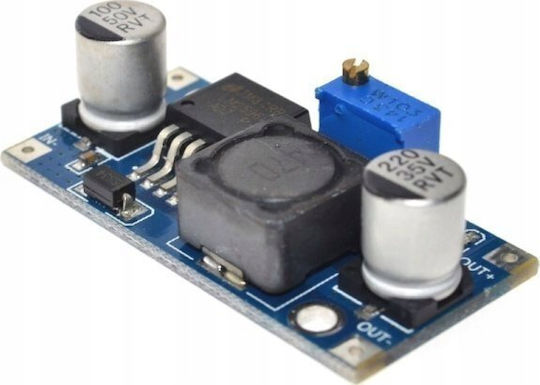

The PZD-LM2596-V2 DC/DC unit converts an input voltage of 3-40 V to an adjustable output voltage of 1.5-35 V. The voltage is adjusted via a precision trimmer.

It features:

• Short circuit protection
• Current limiting
• Auto-CV operation

Technical specifications:

• Input voltage: 3-40 V
• Adjustable output voltage: 1.5-35 V
• Converter circuit: LM2596
• Output current: 2A continuous, Max 3A (with heatsink)
• Efficiency: Max 92%
• Frequency: 150 kHz
• Operating temperature: -40 °C to +85 °C (at 10 W power)
• Weight: 11.7 g
• Size: 47x23x14 mm
