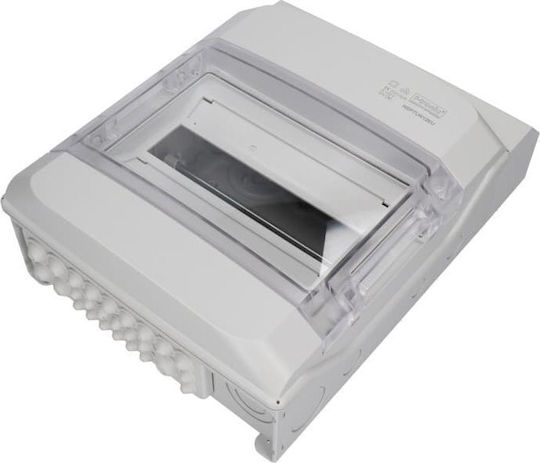

NEPTUN 12-module fuse box, wall-mounted, IP65 Spamel. The fuse box features entry holes for cable glands M32/M50 and side entry holes for M20 and M25 on the top and bottom sides. The entries on the top side of the enclosure are already covered even without the use of cable protection, thus ensuring an aesthetic appearance.

An advanced technical feature of the NEPTUN brand is the IP65 membrane entry gasket, which allows for cable entry without the use of tools and without the need to drill any holes. This technology has the advantage that no additional components, such as cable glands, are required to ensure compliance with the IP65 protection rating. The well-thought-out mounting system saves time and responsibilities.

The NEPTUN fuse box is equipped with elements such as an integrated level and indications of internal mounting points on the back side, including dimensions. The brackets for the external mounting of the NEPTUN fuse box are available as accessories. NEPTUN can be used for rated insulation voltages of AC 400V, AC 1000V, and DC 1500V, thus enabling application in higher voltage photovoltaic systems.

In order to ensure safe operating conditions at AC 1000V or DC 1500V, the use of external NAB brackets is necessary.

Certifications: DIN EN 60670-1, DIN EN 60670-24.

Technical Specifications:

• Umaks -AC 400V
• AC 1000V
• DC 1500V
• Imaks 63A
• Construction 1-row VE/UK/PI 1 / - / 72
• Material PS / PC
• Equipment -1x hooked terminal PE-N (KN17PE)
• -1x cover (ADS12gr)
• Number of modules 12
• Dimensions Height x Width x Depth 340 x 310 x 150
• Sealing capability Yes
• Entries -28x Ø5 - 12 mm
• -14x Ø5 - 15 mm
• -8x Ø6 - 20 mm
• -2x Ø8 - 26 mm
• -2x M32 / M50
• -2x M20
• -2x M25

About the Series:

The new NEPTUN series of fuse boxes for wet rooms with modern design is the best choice for all applications. It is suitable for workshops, industrial halls, stables, garages, and carports. The IP65 protection rating ensures that the NEPTUN brand meets all challenges and protects the interior of its products from harmful water and dust ingress.

This protection is guaranteed in every size, from 1 to 4 rows. This is possible thanks to the continuous top and bottom side, which closes with high-quality transparent doors. The door limiters can be easily and quickly changed via the locking system.

The series of fuse boxes is equipped with a tool-free locking system for mounting support bars at 2 levels. The support bars can be quickly and easily moved from the standard mounting height of 50 mm to 62 mm. Thus, the NEPTUN brand also offers ample space for the installation of deeper-seated devices that are mounted on bars and unit connection systems.
