Cross-section of the connected single-core cable [mm2] from: 1.5

Cross-section of the connected single-core cable [mm2] up to: 6

Cross-section of the connected multi-core cable [mm2] from: 1.5

Cross-section of the connected multi-core cable [mm2] up to: 1.5

Cross-section of the connected stranded cable without ring [mm2] from: 1.5

Cross-section of the connected stranded cable without ring [mm2] up to: 4

Cross-section of the connected stranded cable with ring [mm2] from: 1.5

Cross-section of the connected stranded cable with ring [mm2] up to: 4

Nominal voltage [V]: 660

Length [mm]: 42

• Number of terminals per level: 2
• Connection position: Top/Up
• Height at the lowest installation [mm]: 44

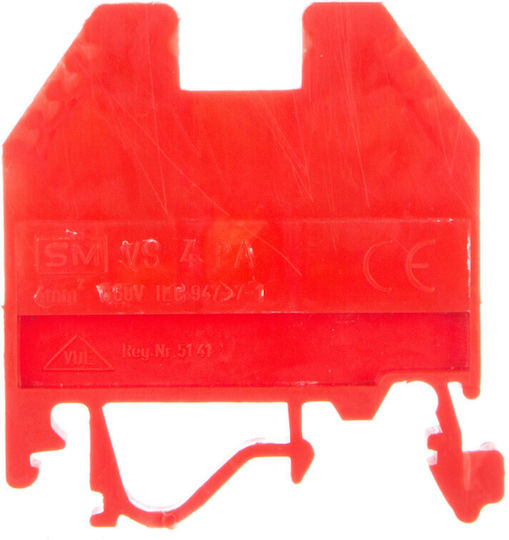

• Color: Red
• Electrical connection Type 2: Screw connection
• Raster width / size [mm]: 6
• Nominal current in [A]: 32
• Electrical connection Type 1: Screw connection
• Number of levels: 1
• Mounting method: DIN rail / G rail
• Type of insulating material: Thermoplastic

Protective rail connectors
