Hensel Surface Mounted Electrical Box Branching Watertight IP66 in Gray Color
Junction Boxes

Hensel Surface Mounted Electrical Box Branching Watertight IP66 in Gray Color

Junction box n/t 5x2.5mm² with dimensions 93x93x62mm in grey color, suitable for use with protection rating IP66/67. Complies with standard IEC 60670-22 and standard DNV GL.

  • It features two terminals...

Junction box n/t 5x2.5mm² with dimensions 93x93x62mm in grey color, suitable for use with protection rating IP66/67. Complies with standard IEC 60670-22 and standard DNV GL.

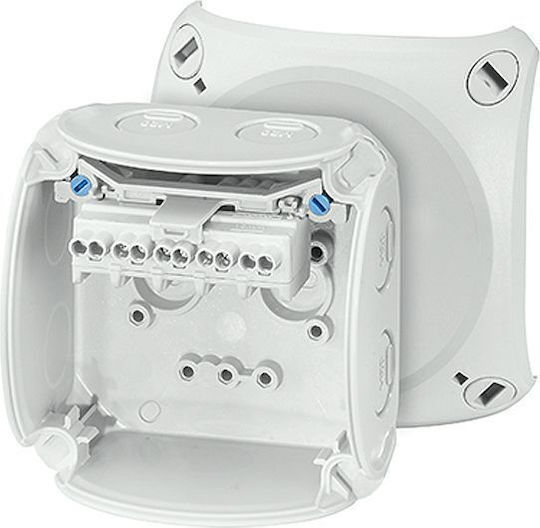

  • It features two terminals for each pole in 5 poles.
  • With the ability to connect wires from 0.75 to 2.5 mm².
  • Incorporated metric knockouts in the side walls.
  • Includes brackets for...
See full description See full description
Review the product
Product report

Description

Description

Junction box n/t 5x2.5mm² with dimensions 93x93x62mm in grey color, suitable for use with protection rating IP66/67. Complies with standard IEC 60670-22 and standard DNV GL.

  • It features two terminals for each pole in 5 poles.
  • With the ability to connect wires from 0.75 to 2.5 mm².
  • Incorporated metric knockouts in the side walls.
  • Includes brackets for mounting the box and a cord that connects the cover to the base.
  • Resistant to solar ultraviolet radiation, rainstorms, and mechanical effects.
  • Can be used in docks and ships.
  • Material: PC (polycarbonate) with GFS.
  • Weight: 0.141 kilograms.

Rated insulation voltage Ui = 690 V a.c./d.c. and rated current: 20A.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Placement
Outdoor
Branching
Yes
Plasterboard
No
Protection Certification
IP66

Protection Certification

It is an indicator that shows us the degree of protection of the box. The indicator (I) which is the first number refers to protection from dust and the indicator (P) which is the second number refers to protection from water. The higher the numbers for each indicator, the better the protection.
Colour
Grey
Length
93 mm
Width
93 mm
Height
62 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Junction box n/t 5x2.5mm² with dimensions 93x93x62mm in grey color, suitable for use with protection rating IP66/67. Complies with standard IEC 60670-22 and standard DNV GL.

  • It features two terminals for each pole in 5 poles.
  • With the ability to connect wires from 0.75 to 2.5 mm².
  • Incorporated metric knockouts in the side walls.
  • Includes brackets for mounting the box and a cord that connects the cover to the base.
  • Resistant to solar ultraviolet radiation, rainstorms, and mechanical effects.
  • Can be used in docks and ships.
  • Material: PC (polycarbonate) with GFS.
  • Weight: 0.141 kilograms.

Rated insulation voltage Ui = 690 V a.c./d.c. and rated current: 20A.

Manufacturer

Manufacturer Details

Warnings & Safety Information
Placement
Outdoor
Branching
Yes
Plasterboard
No
Protection Certification
IP66

Protection Certification

It is an indicator that shows us the degree of protection of the box. The indicator (I) which is the first number refers to protection from dust and the indicator (P) which is the second number refers to protection from water. The higher the numbers for each indicator, the better the protection.
Colour
Grey
Length
93 mm
Width
93 mm
Height
62 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
