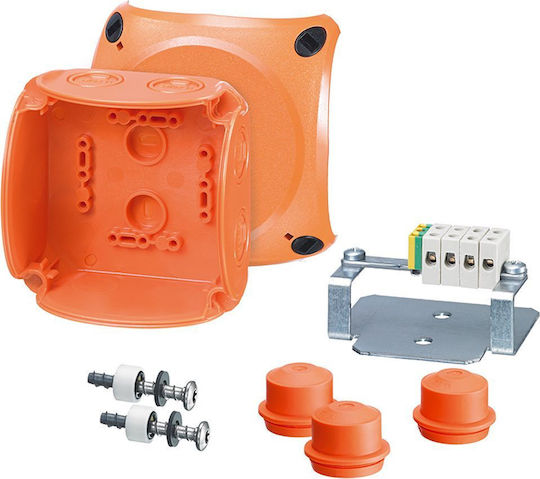

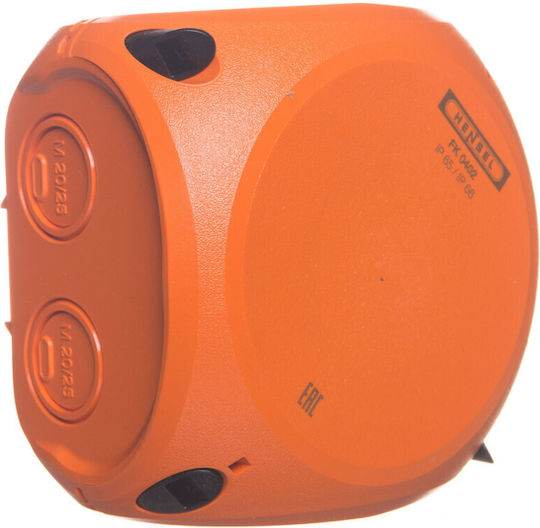

Hensel Surface Mounted Electrical Box Watertight IP65 in Orange Color
Junction Boxes

Hensel Surface Mounted Electrical Box Watertight IP65 in Orange Color

Fireproof box E90 104x104x70mm IP65 5x2.5mm2 FK 0402 (62000180)

Description:

  • Junction box 1.5 mm², Cu 5-pole, for each pole: 4 x 1.5 mm² sol or 2 x 2.5 mm² sol
  • Connection terminals made of ceramic...

Fireproof box E90 104x104x70mm IP65 5x2.5mm2 FK 0402 (62000180)

Description:

  • Junction box 1.5 mm², Cu 5-pole, for each pole: 4 x 1.5 mm² sol or 2 x 2.5 mm² sol
  • Connection terminals made of ceramic resistant to high temperatures
  • Protection level IP 65 with EDKF cable glands (includes three EDKF 25 cable glands, sealing range: Ø 917 mm)
  • Protection level IP 66...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

Fireproof box E90 104x104x70mm IP65 5x2.5mm2 FK 0402 (62000180)

Description:

  • Junction box 1.5 mm², Cu 5-pole, for each pole: 4 x 1.5 mm² sol or 2 x 2.5 mm² sol
  • Connection terminals made of ceramic resistant to high temperatures
  • Protection level IP 65 with EDKF cable glands (includes three EDKF 25 cable glands, sealing range: Ø 9÷17 mm)
  • Protection level IP 66 with AKMF glands (ordered separately)
  • Maintains functionality during fire according to DIN 4102 part 12
  • Tested with cables manufactured by Datwyler and Eupen
  • Certificate No. 0498/2016
  • Tested for circuit continuity PH120
  • The included anchors are intended for installation in concrete C20/25, solid sandstone KSV 12, normal bricks MZ 12, and clinker KS 12 for indoor installations
  • Color: orange, RAL 2003

Technical specifications:

  • Rated insulation voltage Ui = 400 V a.c./d.c.
  • Rated current: 24A
  • Torque for clamp tightening: 0.5 Nm
  • Material: H/PC (polycarbonate) with GFS
  • Protection degree: IP 65
  • Protection degree: IP 66 (AKMF)
  • Height: 104 mm
  • Width: 104 mm
  • Depth: 70 mm
  • Weight: 0.371 kg according to standard DIN 4102 part 12
  • IEC 60670-22

Manufacturer

Manufacturer Details

Warnings & Safety Information
Placement
Outdoor
Branching
No
Plasterboard
No
Protection Certification
IP65

Protection Certification

It is an indicator that shows us the degree of protection of the box. The indicator (I) which is the first number refers to protection from dust and the indicator (P) which is the second number refers to protection from water. The higher the numbers for each indicator, the better the protection.
Colour
Orange
Length
104 mm
Width
104 mm
Height
70 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

186,90 €
14,00 €   shipping cost
