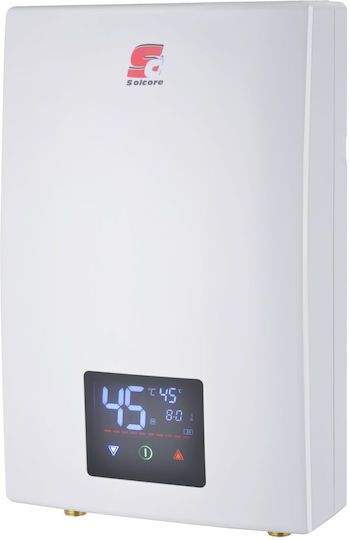

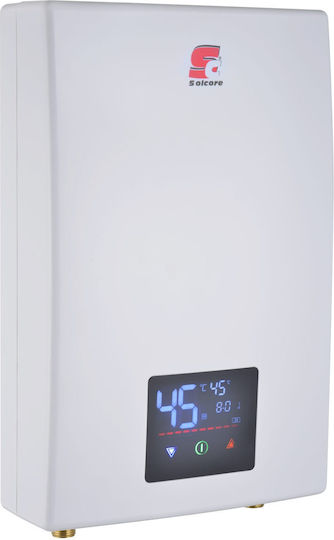

The Solcore K24 instantaneous water heater heats water in real time, switching on automatically when water flows and stopping when the flow ends. Inverter technology and 6th-generation cast-aluminium heating elements support maximum power settings of 18, 21 or 24 kW and temperature settings from 30 °C to 60 °C.
It features an LED display, touch controls and an electronic flow sensor, as well as electronic and mechanical overheat protection. Its functions include self-diagnostics for normal operation and faults, along with multiple safety features. It can be installed as an open-outlet or in-line unit and connected in series with a solar water heater, solar collectors, a central-heating boiler or a natural-gas boiler’s domestic hot-water system.
- Type: Instantaneous water heater
- Power supply: Three-phase electric
- Installation: Central, wall-mounted
- Maximum power: 24 kW
- Adjustable maximum power: 18, 21 or 24 kW
- Maximum temperature: 60 °C
- Temperature setting: From 30 °C to 60 °C
- Technology: Inverter
- Heating elements: 6th-generation cast aluminium
- Controls: LED display and touch controls
- Activation: Automatic when water flows
- Protection: Electronic and mechanical overheat protection
- Self-diagnostics: Normal operation and faults
- Installation options: Open-outlet and in-line
- Ingress protection rating: IP24
- Energy efficiency class: A
- Operating pressure: From 0.1 to 0.7 MPa
- Height: 43.2 cm
- Width: 27.5 cm
- Depth: 7.3 cm
- Product Number
- 1-04-SC-K24
Product Details
- Power Source
- Three-phase electric
- Maximum Power
- 24 kW
- Maximum Flow Rate
- -
- Maximum Temperature
- 60 °C
- Temperature Setting
- Degrees °C
- Placement
- Central Installation
- Wall Mounted
- Yes
- Inverter
- Yes
- Remote Control
- No
Energy Label
- Energy Class
- -
Dimensions
- Height
- 43.2 cm
- Width
- 27.5 cm
- Length
- 7.3 cm
