Staircase switch 230V 16A for rail, 1 unit IP40 - AS-212

The staircase timer is used to maintain lighting in corridors, stairs, or other installations for a specified period, after which the lighting will automatically turn off. It is activated with a momentary switch (bell) and keeps the lighting on for the time set by the knob. After the specified time has elapsed, the device will automatically turn off the lighting. After turning off the lighting, we can turn it on again.

• Installation method: DIN rail
• Feature: Electronic
• Installation depth: 35mm
• Number of contacts: 1
• Number of break contacts: 0
• Number of transition contacts: 0
• Activation delay: 0.5 - 10 minutes
• Width expressed in number of modules: 1
• Control voltage: 230V
• Control voltage type: AC
• Control voltage frequency: 50Hz

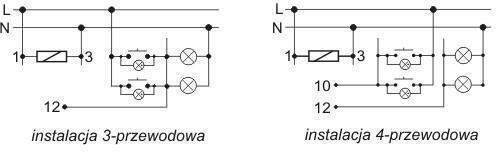

• Connection system: 4 wires
• Shutdown warning: Brightness reduction to 50%
• Operating cycle: Repetitive + continuous lighting + time extension
• Supply voltage type: AC
• Supply voltage range: 230V
• Maximum switching capacity for lamps: 1500W
• Maximum switching capacity for fluorescent lamps: 350VA
• Maximum switching capacity for fluorescent lamps (DUO compensation): 650VA
• Maximum switching capacity for fluorescent lamps (with parallel compensation): 500VA
• Rated switching current: 10A
• Current pulse switching function: No
