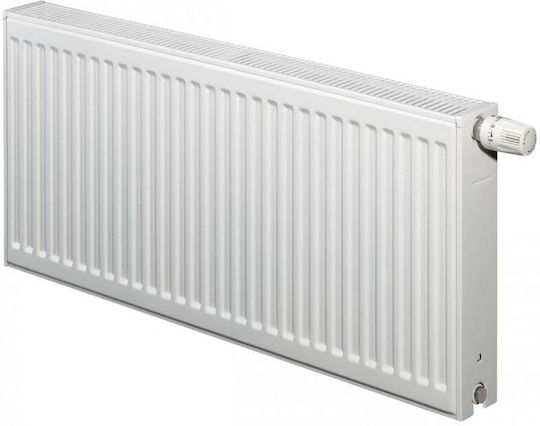

Panel radiator with a classic timeless line and rounded edges that are child-friendly.

COMPACT radiators are made of special cold-rolled steel sheet with quality according to EN 442-1, with side covers and a top cover-grille. They form a complete heating element.

The corrugation of the sheet of panels occurs every 33.3 mm. A convective sheet is welded to the inner sides of the water channels. The external surface treatment involves degreasing, iron phosphating, passivation, rinsing, and priming through cathodic electrodeposition according to DIN 55900 part 1 and baking.

The final surface treatment involves high-quality, electrostatic powder coating according to DIN 55900 part 2 and re-baking. Color: White Stelrad 9016.

Standard radiators are equipped with a set of Monclac-type strip mounts that allow the radiator to be reversed and easily mounted, a cap, and a vent. They are packed in heat-shrinkable film with a cardboard edge protector.

The construction meets the BAGUV safety requirements.

• Heat output checked according to EN 442
• Connections: 4x 1/2"
• Connection: from the side on the right or left side
• Operating overpressure: 10 bar
• Heat carrier temperature: hot water up to 110°C
• Type: 22
• Height: 600mm
• Length: 800mm
• Depth: 100mm
• Power: 70/55/20°C: 1115W
• 55/45/20°C: 701W
