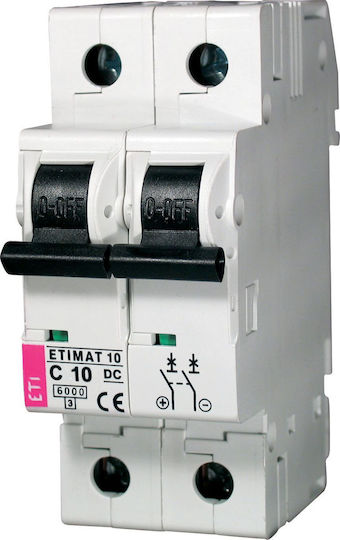

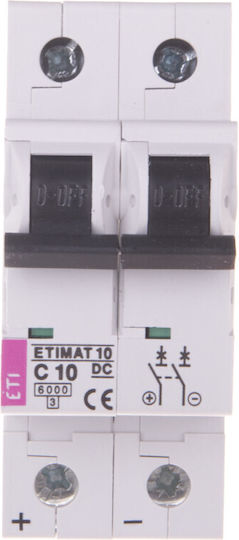

ETI Automatic Circuit Breaker 10A Double-pole AC/DC 002138714
Automatic Circuit Breaker

ETI Automatic Circuit Breaker 10A Double-pole AC/DC 002138714

Circuit breaker 2P C 10A 6kA DC ETIMAT10 (002138714)

  • Identification Code: ETI 002138714
  • Weight: 0.234 kg
  • Function: MCB
  • Short-circuit current (kA): 6
  • Nominal current (A): 10
  • Number of poles: 2
  • Voltage...

Circuit breaker 2P C 10A 6kA DC ETIMAT10 (002138714)

  • Identification Code: ETI 002138714
  • Weight: 0.234 kg
  • Function: MCB
  • Short-circuit current (kA): 6
  • Nominal current (A): 10
  • Number of poles: 2
  • Voltage type: DC
  • Installation depth: 68mm
  • Nominal voltage: 440V
  • Energy limiting class: 3
  • Width expressed in number of modules: 2
  • Degree of protection (IP): IP20
  • Rated...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

Circuit breaker 2P C 10A 6kA DC ETIMAT10 (002138714)

  • Identification Code: ETI 002138714
  • Weight: 0.234 kg
  • Function: MCB
  • Short-circuit current (kA): 6
  • Nominal current (A): 10
  • Number of poles: 2
  • Voltage type: DC
  • Installation depth: 68mm
  • Nominal voltage: 440V
  • Energy limiting class: 3
  • Width expressed in number of modules: 2
  • Degree of protection (IP): IP20
  • Rated switching capacity according to EN 60898: 6kA
  • Possibility of additional equipment: true

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Poles
2
Rated Current
10 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Circuit breaker 2P C 10A 6kA DC ETIMAT10 (002138714)

  • Identification Code: ETI 002138714
  • Weight: 0.234 kg
  • Function: MCB
  • Short-circuit current (kA): 6
  • Nominal current (A): 10
  • Number of poles: 2
  • Voltage type: DC
  • Installation depth: 68mm
  • Nominal voltage: 440V
  • Energy limiting class: 3
  • Width expressed in number of modules: 2
  • Degree of protection (IP): IP20
  • Rated switching capacity according to EN 60898: 6kA
  • Possibility of additional equipment: true

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
2
Rated Current
10 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
