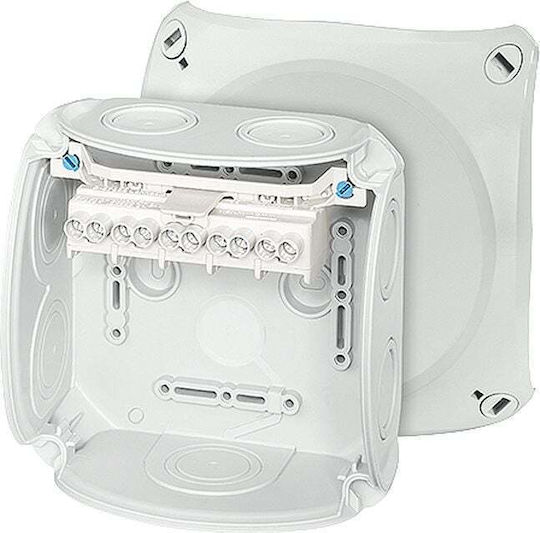

Junction box with dimensions 130x130x77 capable of connecting wires 2.5-6 mm² and made of Cu. It contains two terminals for each pole. It supports cables: 6 x 1.5 mm² sol / f, 4 x 2.5 mm² sol / f, 4 x 4 mm² sol / f, 4 x 6 mm² sol / f, 2 x 10 mm² sol / f. It features built-in cable glands with a sealing range of Ø 9.0-21.0 mm, which can be removed and replaced with screw type glands. Additionally, it includes a cover seal without additional components, brackets for mounting the box, and a cord that connects the cover to the base.

Features:

• Color: gray, RAL 7035
• Rated insulation voltage: Ui = 690 V a.c./d.c.
• Rated current: 40A
• Clamp tightening torque: 1.5 Nm
• Material: PP (polypropylene)
• Protection rating: IP 66
• Weight: 0.245 kg according to IEC 60670-22 standard
