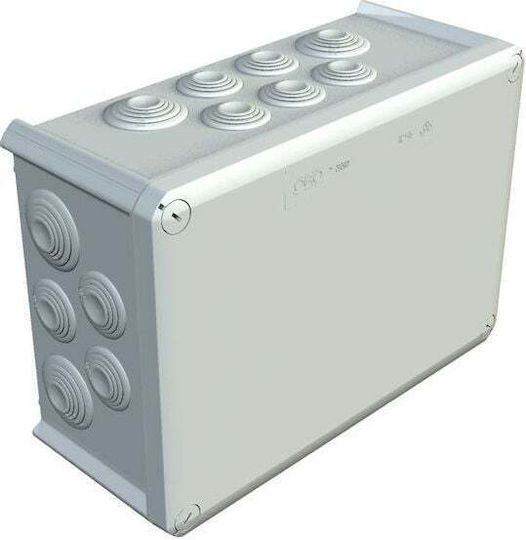

The Bettermann 2007125 junction box is designed for surface mounting and has an IP66 protection rating. Its body is made of glass-fibre-reinforced polypropylene, while the cover features a marking area and can be sealed.
- Mounting: Surface-mounted
- Number of junctions: 1
- Material: Glass-fibre-reinforced polypropylene
- Colour: Grey, RAL 7035
- Protection rating: IP66

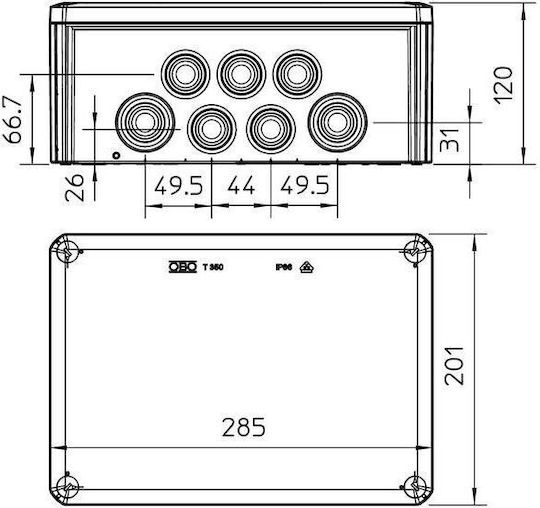

- Internal dimensions: 267 x 182 x 110 mm
- External dimensions: 285 x 201 x 120 mm
- Entries: 16 x M32, 8 x M40
- Maximum conductor cross-section: 35 mm²
- Rated insulation voltage: 500 V
- UV resistance: Yes
- Test temperature: 650 °C
- Cover: With marking area and sealable design
- Placement
- Outdoor
- Branching
- Yes
- Plasterboard
- No
- Protection Certification
- IP66
- Colour
- Grey
- Length
- 285 mm
- Width
- 201 mm
- Height
- 120 mm
