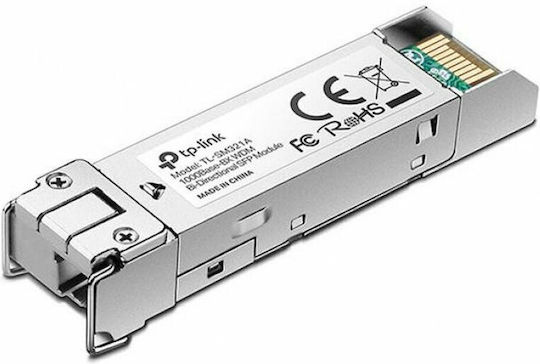

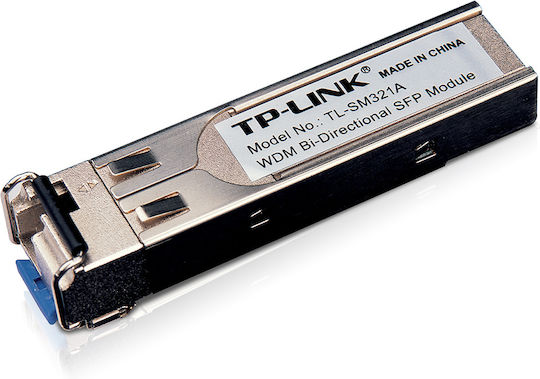

TP-LINK Transceiver TL-SM321A SFP 1τμχ

The TP-LINK TL-SM321A is an SFP transceiver with WDM Bi-Directional technology, which enables transmission over a single optical fiber using a different wavelength for each direction. It supports the...

The TP-LINK TL-SM321A is an SFP transceiver with WDM Bi-Directional technology, which enables transmission over a single optical fiber using a different wavelength for each direction. It supports the 1000Base-BX standard and a data rate of 1.25 Gbps, with a maximum transmission distance of 10 km.

It works with 9/125 μm single-mode fiber and features an...

See full description See full description
11 94 €
Delivery by Mon, 23 Nov
14,00 €   shipping cost
Sent from Greece
From Shoplando 4.9 (71)

Learn more about invoicing

Description

Description

The TP-LINK TL-SM321A is an SFP transceiver with WDM Bi-Directional technology, which enables transmission over a single optical fiber using a different wavelength for each direction. It supports the 1000Base-BX standard and a data rate of 1.25 Gbps, with a maximum transmission distance of 10 km.

It works with 9/125 μm single-mode fiber and features an LC/UPC port and an internal 3.3 V power supply. It offers Plug-and-Play operation and pairs with the TL-SM321B.

  • Quantity: 1
  • Form factor: SFP
  • Standards and protocols: IEEE 802.3z, CSMA/CD, TCP/IP
  • Technology: WDM Bi-Directional
  • Transmit wavelength: 1550 nm
  • Receive wavelength: 1310 nm
  • Fiber type: Single-mode, 9/125 μm
  • Maximum transmission distance: 10 km
  • Data rate: 1.25 Gbps
  • Port type: LC/UPC
  • Power supply: 3.3 V
  • Operating temperature: 0 °C to 70 °C
  • Storage temperature: -40 °C to 80 °C
  • Operating humidity: 10% to 90%, non-condensing
  • Storage humidity: 5% to 90%, non-condensing
  • Certifications: FCC, CE
  • Compatibility: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351, MC200L
