SPECIAL FEATURES:

• Compact design
• IPX5 protection level prevents moisture from entering the mechanical part and electronic systems
• Motor body made of AISI 304 stainless steel
• Electronics and vent screw for access to the shaft
• New user interface with sequential operation button
• High energy efficiency with EEI coefficient ≤ 0.18

APPLICATION: Designed for energy saving, electronic pump for all types of domestic heating, ventilation, and air conditioning installations.

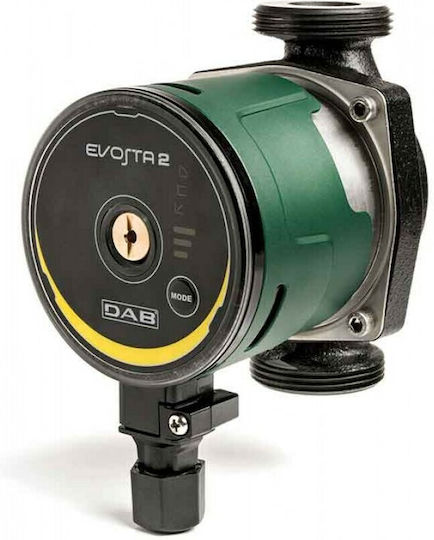

PRODUCT STRUCTURE AND ADVANTAGES: The EVOSTA 2 pump series combines durability and the advantages of electronic pumps. It features a modern motor with permanent magnets, a frequency converter, and an energy efficiency of EEI < 0.18, along with an IPX5 insulation class.

The pumps offer easy use with a sequential settings button and direct access to the motor shaft. Pump body made of cast iron with cataphoretic coating. Motor with wet shaft and steel rotor. Ceramic motor shaft lubricated by the pumped medium.

The settings of the EVOSTA 2 and EVOSTA 3 pumps can be changed via the control panel. Three LED indicators show the current setting.

TECHNICAL CHARACTERISTICS:

• Type: Circulators for central heating
• Weight: 2.9 kg
• Maximum power: 350 W
• Maximum water lift height: 6.9 m
