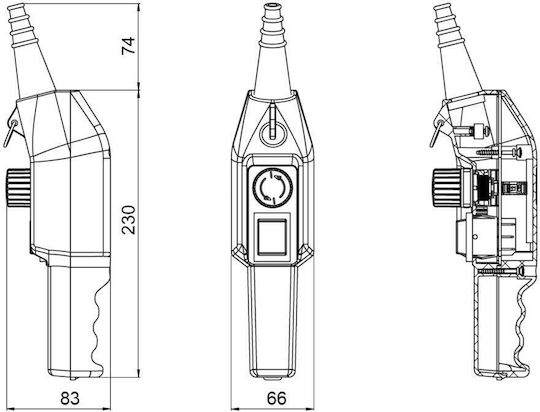

Crane control box SP22-B-01 with ON-OFF-ON switch and automatic return (PKS-2W02). Technical specifications:

• Rated insulation voltage: Ui 500 V
• Rated continuous current: Iu=Ith 10 A
• Rated operating current AC-15: 2.5 A (230 V), 1.6 A (400/500 V)
• Rated operating current DC-13: 4 A (24 V), 1 A (110 V), 0.25 A (220 V)
• Short circuit protection for connection traces: 10 A (fast fuse), 1 kA (expected short circuit current for Ue = 500 V)
• Mechanical endurance: 0.3 million adjustment cycles
• Electrical lifetime: 0.2 million (rated voltages and currents), 1.0 million (switching cycles) - up to 80 VA (AC solenoid connection), - up to 10 W (DC solenoid connection)
• Switching frequency: up to 3600 h-1
• Ambient temperature: -40 ... +70°C (operation), -40 ... +70°C (storage)
• Vibration resistance: 2...13, 2...100 Hz (frequency), ± 1 mm (amplitude), ± 0.7 g (acceleration)
• Impact resistance: 15 g (maximum acceleration), 11 ms (pulse duration)
• Resistance to liquid cyclic heat: 55°C (ambient temperature), 95% (relative humidity)
• Resistance to circular salt mist: clarity test 1
• Protection level: IP65 of the cassette
• Connecting wire cross-section: 2× 1...2.5 mm² (single wire), 2× 0.75...1.5 mm² (with insulation)
• Any working position
• Terminal designation: PN-EN 50013
• Compliance with standard: PN EN 60204-32
• Type: Control pendant
• Type: Control cassettes
