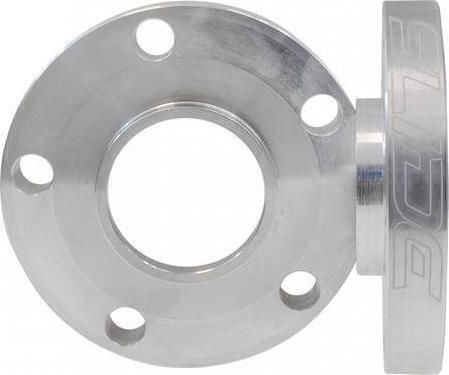

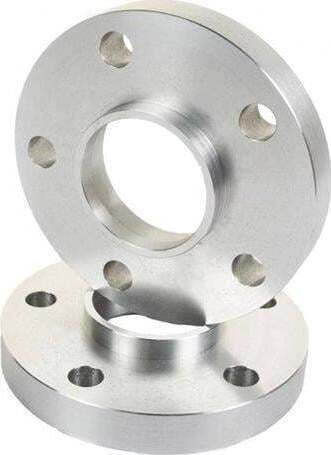

Through spacers with a thickness of 12 mm per side with a centering flange.
- Material: Duralumin PA6
- Spacer thickness: 13 mm per side (26 mm per axle)
- Hole/flange diameter: 72.6 mm
- Hole size: 5x120mm
-
Compatible screws:
- M12x1.25 40mm CONE
- M12x1.5 BALL 40mm
- M12x1.5 40mm CONE
- M14x1.5 BALL 40mm
- M14x1.5 40mm CONE
- Bolt hardness: 10.9
-
Fits:
- Series 1 - E82, E87, E88
- Series 3 - E36, E46, E90, E91, E92, E93, F30
- Series 5 - E28, E34, E60, E61
- Series 6 - E35
- Series 7 - E32
- BMW Z3
- BMW Z4
- BMW Z8
The spacers are made of hard PA6 aluminum, making them durable and lightweight. The hole and centering flange are created with a tolerance of up to 0.05 mm, ensuring precise wheel centering and preventing steering vibrations. The bolt-on spacers feature pressed pins or steel rings with threads, preventing thread stripping.
The advantage of spacers is the increase in the wheel track, improving the vehicle's handling in turns and providing a better appearance, as the wheels are not hidden in the fenders. Thanks to the spacers, it is possible to mount rims with different parameters, such as a larger offset (ET), and modify the distance of the bolts, allowing the installation of rims from another car with the same number of fastening bolts.
